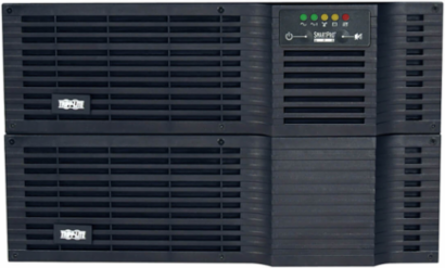

Tripp Lite SM5000RT3UTAA TAA SmartPro 208/120V 5kVA 4kW Line-Interactive Sine Wave UPS, 6U, Extended Run, Network Card Options, USB, DB9
Tripp Lite SM5000RT3UTAA TAA SmartPro 208/120V 5kVA 4kW Line-Interactive Sine Wave UPS, 6U, Extended Run, Network Card Options, USB, DB9
- MPN: SM5000RT3UTAA
- UPC: 037332161475
- PPN: TRP-SM5000RT3UTAA
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
TAA SmartPro 208/120V 5kVA 4kW Line-Interactive Sine Wave UPS, 6U, Extended Run, Network Card Options, USB, DB9
Features
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 5kVA / 5000VA / 4000W line interactive 6U rack/tower UPS, Sine wave output
- 208 & 120V output during brownouts to 151V and overvoltages to 260V
- USB, RS232, EPO and slot for network communication card options
- Expandable runtime, 8 single-outlet switched output load banks
- NEMA L6-30P input, 10 5-15R, 2 5-15/20R, 1 L6-30R & 1 L14-30R outlets
- To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 1020
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 16 min. (4000w)
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- DC System Voltage (VDC)
- 48
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)38 min. (2000w)
External Battery Pack CompatibilityBP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
Battery Recharge Rate (Included Batteries)3 hours
Expandable RuntimeYes
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); TAA Compliant
Physical
- Cooling Method
- Fans
- Included Battery Pack Weight (lbs.)
- 135
- Installation Form Factors Supported with Optional Accessories
- 2 post rackmount ( 2POSTRMKITHD ); Tower ( 2-9USTAND )
- Minimum Required Rack Depth with External Battery Pack (in.)
- 29.5
- Minimum Required Rack Depth without External Battery Pack (in.)
- 28.25
- Primary Form Factor
- Rackmount
- Primary UPS Height (mm)
- 132
- Rack Height
- 6U
- Shipping Weight (lbs.)
- 321.62
- UPS Housing Material
- Steel
Included Battery Pack Dimensions (hwd / in.)5.2 x 17.5 x 22.8
Installation Form Factors Supported with Included Accessories4 post 19 inch rackmount
Minimum Required Rack Depth with External Battery Pack (cm)75
Minimum Required Rack Depth without External Battery Pack (cm)72
Optional Mounting Accessory Notes2 sets of 2POSTRMKITHD required for 2 post rackmount installation of separate power module and battery pack
Primary UPS Depth (mm)572
Primary UPS Width (mm)445
Shipping Dimensions (hwd / in.)24.50 x 35.00 x 24.00
UPS Dimensions DetailsIncludes 3U UPS/power module and 3U external battery pack
UPS Power Module Dimensions (hwd, in.)5.2 x 17.5 x 22.5
User Interface, Alerts & Controls
- Switches
- 2 Switches control off/on power status and alarm-cancel/self-test operation
- Audible Alarm
- Audible alarm indicates power-failure, overload and low-battery conditions
Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282
- Undervoltage Correction
- Input voltages between 180V and 199 are boosted by 12%
Overvoltage CorrectionInput voltages between 240V and 282 are reduced by 12%
Severe Undervoltage CorrectionInput voltages between 151V and 179 are boosted by 24%
Input
- Nominal Input Voltage(s) Supported
- 208V AC
- Input Circuit Breakers
- 30A double-pole
- Recommended Electrical Service
- 30A 208V
UPS Input Connection TypeL6-30P
UPS Input Cord Length (ft.)10
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 5000
- Output Watt Capacity (Watts)
- 4000
- Power Factor
- 0.8
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Output Circuit Breakers
- 15A branch rated (x3) - 2 breakers support 5 5-15R outlets each, one breaker supports 2 5-20R outlets, L6-30R and L14-30R outlets are unbreakered
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V; 208V
- Individually Controllable Load Banks
- Yes
Output kVA Capacity (kVA)5
Output kW Capacity (kW)4
Nominal Voltage Details208/120V nominal output in battery mode
Output Voltage Regulation (Line Mode)208 & 120V (-10%, +20%)
Load Management ReceptaclesEight switchable single-outlet 5-15R load banks
Output AC Waveform (AC Mode)Sine wave
Output Capacity DetailsMaximum output increases to 4800W when hardwire or user supplied 50A rated input plug is used

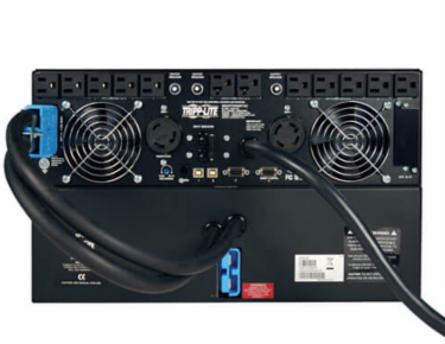

Output Receptacles(10) 5-15R; (2) 5-15/20R; (1) L14-30R; (1) L6-30R
Communications
- Network Management Cards
- SNMPWEBCARD ; WEBCARDLX
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact closure port (4 total)
Communications CableUSB and DB9 cabling included
Communications InterfaceContact closure; DB9 Serial; Slot for SNMP/Web interface; USB
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- 94%
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Battery Mode BTU / Hr. (Full Load)1518
Audible Noise45 dBA maximum, front side 1m
Overview
- UPC Code
- 037332161475
UPS TypeLine-Interactive
Special Features
- Grounding Lug
- Back panel grounding lug
- High Availability UPS Features
- Hot swappable batteries
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 2-4 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 282
Low Voltage Transfer to Battery Power (Setpoint)151
