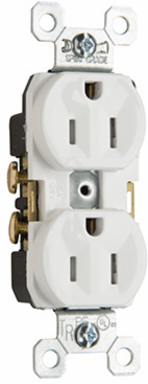

Pass & Seymour TR15LA 15A 125V Tamper-Resistant Duplex Receptacle, Light Almond, 3.28 Inch Height
- MPN: TR15LA
- UPC: 785007241693
- PPN: P-S-TR15LA
CAD
$13.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Tamper-Resistant Duplex Receptacle, Light Almond, 3.28 Inch Height
Features
- Dual mechanical shutter system to help prevent insertions of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive steel terminal screws. Side wire only.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.93 in
- Color
- Light Almond
- Width
- 1.37 in
- Amperage
- 15.0 A
- Number of Gangs
- 1
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-15R
- Warranty Type
- 1-Year Limited Warranty
- Environmental Conditions
- Flammability: UL94 V2
- Special Features
- Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive steel terminal screws for faster installation. Side wire capability. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
Height3.28 in
Product LinePass & Seymour
Country of OriginMexico
Voltage125.0 V
Number of USBs2.0
StandardcULus UL498
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
StandardCSA C22.2 No. 42
Outlet TypeTamper-Resistant
Connection LocationSide Only
Wire Connection TypeScrew Terminals
Dielectric StrengthWithstands 1500V minimum
FeaturesSingle Piece Plated Steel Mounting Strap
