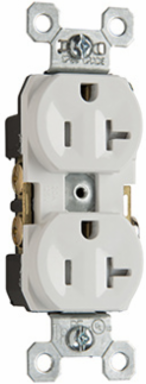

Pass & Seymour TR20LA 20A 125V Commercial Grade Tamper-Resistant Duplex Receptacle, Light Almond, 3.28 Inch Height, 1.37 Inch Width, 0.93 Inch Depth
Pass & Seymour TR20LA 20A 125V Commercial Grade Tamper-Resistant Duplex Receptacle, Light Almond, 3.28 Inch Height, 1.37 Inch Width, 0.93 Inch Depth
- MPN: TR20LA
- UPC: 785007241617
- PPN: P-S-TR20LA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$14.92/ EA
Description
Tamper-Resistant Commercial Grade Receptacle, 20A, 125V. Available in 6 colors. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Dual mechanical shutter system to help prevent insertions of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive steel terminal screws. Side wire only.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Specifications
Specifications
- Depth
- 0.93 in
- Color
- Light Almond
- Finish
- Matte
- Product Line
- Pass & Seymour
- Standard
- UL 498
- Mounting Type
- Box
- Indoor/Outdoor
- Indoor
- Frequency Rating
- 60 Hz
- Is Tamper-Resistant
- Yes
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- NEMA Configuration Code
- 5-20R
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Features
- Single Piece Plated Steel Mounting Strap
Height3.28 in
Width1.37 in
Country of OriginMexico
Amperage20.0 A
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Wall Plate IncludedNo
Number of Receptacles2.0
Outlet TypeTamper-Resistant
Connection LocationSide Only
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
