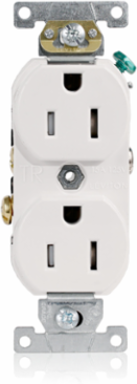

Leviton TCR15-W Duplex Receptacle 15 Amp 125 Volt Tamper-Resistant Commercial Grade
- MPN: TCR15-W
- UPC: 078477655382
- PPN: LEV-TCR15-W
CAD
$5.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NOM
- 057
NEMAWD-1 & WD-6
cULusFile E13399
Material Specifications
- Body Material
- Thermoplastic
- Ground Clips
- Brass
- Line Contacts
- Brass .031 Thick
- Strap Material
- Zinc-Plated Steel
Face MaterialThermoplastic
Grounding ScrewPlated Steel
Shutter MechanismDelrin® Acetal
Terminal ScrewsPlated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 10-14 AWG
- Termination
- Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Wire TypeSolid or Stranded Building Wire
Product Features
- Color
- White
- Feature 2
- Tamper-Resistant
- Grade
- Commercial Specification Grade
Device TypeDuplex Receptacle Outlet
Feature 4Smooth Face
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
