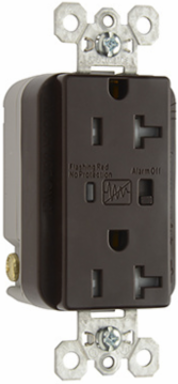

Pass & Seymour TR5362SP 20A 125V Extra Heavy Duty Tamper-Resistant Duplex Receptacle, 1.7 Inch Width
Pass & Seymour TR5362SP 20A 125V Extra Heavy Duty Tamper-Resistant Duplex Receptacle, 1.7 Inch Width
- MPN: TR5362SP
- UPC: 785007019636
- PPN: P-S-TR5362SP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$120.70/ EA
Description
Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (with Audible Alarm and LED Indicator), Back and Side Wire, 20A, 125V. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Dual mechanical shutter system to help prevent insertions of foreign objects.
- AC receptacles available in 15 and 20 Amp, 125V
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
Specifications
Specifications
- Depth
- 1.4 in
- Special Features
- Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator).
- Width
- 1.7 in
- Product Line
- Pass & Seymour
- Amperage
- 20.0 A
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Wall Plate Included
- No
- Features
- Indicator Lights
- Outlet Type
- Straight Blade
- Outlet Type
- Surge Protected
- Application Sector
- Commercial
- Environmental Conditions
- UL94 V2
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
Height2.75 in
ColorBrown
Country of OriginChina
PhaseSingle
Voltage125.0 V
Indoor/OutdoorIndoor
FeaturesAudible Alarm
Is Tamper-ResistantYes
Number of Receptacles2.0
Number of PolesDouble Pole
Outlet TypeTamper-Resistant
NEMA Configuration Code5-20R
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
