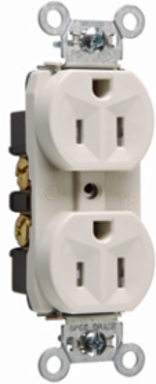

Pass & Seymour TR5262LA 15A 125V Tamper-Resistant Duplex Receptacle, 1.13 Inch Depth, Light Almond
- MPN: TR5262LA
- UPC: 785007243802
- PPN: P-S-TR5262LA
CAD
$32.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A 125V Tamper-Resistant Duplex Receptacle, 1.13 Inch Depth, Light Almond
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- AC receptacles available in 15 and 20A, 125V.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.13 in
- Height
- 2.635 in
- Width
- 1.322 in
- Standard
- UL 498
- Number of Wires
- 3.0
- Product Line
- Pass & Seymour
- Wire Size
- 14 - 10 AWG
- Is Tamper-Resistant
- Yes
- Number of Poles
- Double Pole
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Features
- Single Piece Plated Steel Mounting Strap
PhaseThree
Amperage15.0 A
Country of OriginMexico
Voltage125.0 V
ColorLight Almond
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Outlet TypeTamper-Resistant
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
Special FeaturesSurge protective, corrosion resistant, led indication, back & side wire
