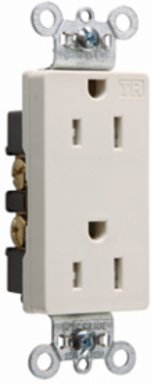

Pass & Seymour TR26262LA Tamper-Resistant Decorator Receptacle 15A 125V Light Almond 0.78 Inch Depth
- MPN: TR26262LA
- UPC: 785007277296
- PPN: P-S-TR26262LA
CAD
$23.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tamper-Resistant Decorator Receptacle 15A 125V Light Almond 0.78 Inch Depth
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Color
- Light Almond
- Product Line
- Pass & Seymour
- Country of Origin
- Mexico
- Standard
- UL 498
- Standard
- FEDSPEC
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Features
- Decorator Style
- Outlet Type
- Straight Blade
- Outlet Type
- Tamper-Resistant
- NEMA Configuration Code
- 5-15R
- Wire Connection Type
- Screw Terminals
- Features
- Single Piece Plated Steel Mounting Strap
Height2.635 in
Width1.322 in
PhaseThree
Amperage15.0 A
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Special FeaturesDual mechanical shutter system, plated steel wrap, built in connector, crimped & welded contacts
