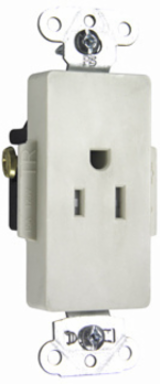

Pass & Seymour TR26261LA Tamper-Resistant Decorator Single Receptacle, 15A, 125V, Light Almond, 1.322 Inch Width, 2.635 Inch Height
- MPN: TR26261LA
- UPC: 785007004915
- PPN: P-S-TR26261LA
CAD
$27.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tamper-Resistant Decorator Single Receptacle, 15A, 125V, Light Almond, 1.322 Inch Width, 2.635 Inch Height
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.188 in
- Standard
- UL498
- Width
- 1.322 in
- Voltage
- 125.0 V
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 1.0
- Outlet Type
- Straight Blade
- Outlet Type
- Tamper-Resistant
- NEMA Configuration Code
- 5-15R
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Wire Connection Type
- Internal Pressure Plates
- Color
- Light Almond
- Features
- Single Piece Plated Steel Mounting Strap
Height2.635 in
Amperage15.0 A
Country of OriginMexico
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
StandardCSA C22.2 No. 42
Number of PolesDouble Pole
Application SectorCommercial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Dielectric StrengthWithstands 2000V minimum
Environmental ConditionsFlammability: UL94 V2
Product LinePass & Seymour
Special FeaturesDual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. One-piece, brass, triple-wipe power contacts for lasting retention. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest. Heavy-duty corrosion-resistant zinc-plated steel strap for added strength.
