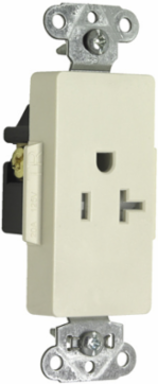

Pass & Seymour TR26361LA 20A 125V Tamper-Resistant Duplex Receptacle, 1.322 Inch Width, Light Almond
- MPN: TR26361LA
- UPC: 785007004892
- PPN: P-S-TR26361LA
CAD
$29.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Tamper-Resistant Duplex Receptacle, 1.322 Inch Width, Light Almond
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.188 in
- Height
- 2.635 in
- Amperage
- 20.0 A
- Country of Origin
- Mexico
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Features
- Decorator Style
- Standard
- CSA C22.2 No. 42
- Outlet Type
- Tamper-Resistant
- NEMA Configuration Code
- 5-20R
- Product Line
- Pass & Seymour
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Operating Temperature
- -40°-60°C
- Wire Connection Type
- Internal Pressure Plates
- Special Features
- Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. One-piece, brass, triple-wipe power contacts for lasting retention. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest. Heavy-duty corrosion-resistant zinc-plated steel strap for added strength.
StandardUL498
Width1.322 in
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Number of Receptacles1.0
Number of PolesDouble Pole
Application SectorCommercial
ColorLight Almond
Connection LocationBack and Side
Operating Temperature Max60.0 °C
FeaturesHeavy Duty Steel Mounting Strap
Dielectric StrengthWithstands 2000V minimum
Environmental ConditionsFlammability: UL94 V2
