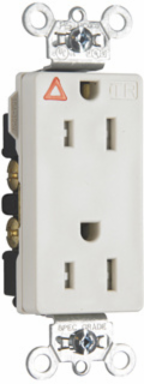

Pass & Seymour TRIG26262LA Tamper-Resistant Decorator Receptacle, 15A, 125V, Light Almond, 3.625 Inch Height
Pass & Seymour TRIG26262LA Tamper-Resistant Decorator Receptacle, 15A, 125V, Light Almond, 3.625 Inch Height
- MPN: TRIG26262LA
- UPC: 785007011982
- PPN: P-S-TRIG26262LA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$42.70/ EA
Description
Tamper-Resistant Isolated Ground Decorator Spec Grade Duplex Receptacle, Back and Side Wire, 15amp 125volt, Orange.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Specifications
Specifications
- Depth
- 1.25 in
- Special Features
- Dual mechanical shutter system to help prevent insertion of foreign objects. IG symbol and Isolated Ground markings for easy identification and circuit delineation. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- Width
- 1.187 in
- Country of Origin
- Mexico
- Color
- Light Almond
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Features
- Decorator Style
- Outlet Type
- Straight Blade
- Outlet Type
- Isolated Ground
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Environmental Conditions
- Flammability: UL94 V2
Height3.625 in
Amperage15.0 A
Voltage125.0 V
StandardFEDSPEC
Product LinePass & Seymour
StandardcULus UL498
Wire Size14 - 10 AWG
Is Tamper-ResistantYes
Number of Receptacles2.0
Number of PolesDouble Pole
Outlet TypeTamper-Resistant
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
Dielectric StrengthWithstands 2000V minimum
FeaturesSingle Piece Plated Steel Mounting Strap
