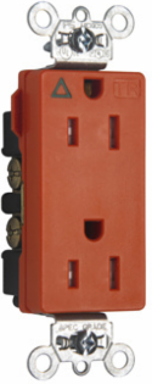

Pass & Seymour TRIG26262 Tamper-Resistant Decorator Receptacle 15A 125V Orange 1.187 Inch Width
- MPN: TRIG26262
- UPC: 785007012378
- PPN: P-S-TRIG26262
CAD
$44.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Tamper-Resistant Decorator Receptacle 15A 125V Orange 1.187 Inch Width
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.25 in |
|---|---|
| Special Features | Dual mechanical shutter system to help prevent insertion of foreign objects. IG symbol and Isolated Ground markings for easy identification and circuit delineation. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest. |
| Amperage | 15.0 A |
| Voltage | 125.0 V |
| Number of Wires | 3.0 |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Features | Decorator Style |
| Outlet Type | Straight Blade |
| Outlet Type | Isolated Ground |
| Application Sector | Commercial |
| Color | Orange |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Environmental Conditions | Flammability: UL94 V2 |
| Height | 3.625 in |
|---|---|
| Width | 1.187 in |
| Country of Origin | Mexico |
| Standard | FEDSPEC |
| Standard | cULus UL498 |
| Wire Size | 14 - 10 AWG |
| Is Tamper-Resistant | Yes |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Outlet Type | Tamper-Resistant |
| NEMA Configuration Code | 5-15R |
| Product Line | Pass & Seymour |
| Wire Connection Type | Screw Terminals |
| Dielectric Strength | Withstands 2000V minimum |
| Features | Single Piece Plated Steel Mounting Strap |
