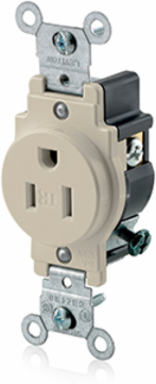

Leviton T5015-I Tamper-Resistant Single Receptacle 15 Amp 125 Volt Commercial Grade
Leviton T5015-I Tamper-Resistant Single Receptacle 15 Amp 125 Volt Commercial Grade
- MPN: T5015-I
- UPC: 078477391952
- PPN: LEV-T5015-I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$7.64/ EA
Description
Single Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Ivory
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Thermoplastic Nylon
- Color
- Ivory
- Ground Clips
- Brass-Plated
- Line Contacts
- Brass Triple-Wipe
- Terminal Screws
- Brass 10-32
Clamp NutsZinc-Plated Steel
Face MaterialThermoplastic Nylon
Grounding ScrewBrass 8-32
Strap MaterialZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Device Type
- Single Receptacle Outlet
- Grade
- Commercial Specification Grade
FeatureTamper-Resistant|Smooth Face
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current LimitingFull Rated Current
Pole2
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
