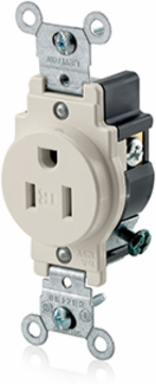

Leviton T5015-T Tamper-Resistant Outlet, 15 Amp, 125 Volt, Commercial Grade, Light Almond
- MPN: T5015-T
- UPC: 078477417737
- PPN: LEV-T5015-T
CAD
$7.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Single Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Light Almond
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Thermoplastic Nylon
- Color
- Light Almond
- Ground Clips
- Brass-Plated
- Line Contacts
- Brass Triple-Wipe
- Terminal Screws
- Brass 10-32
Clamp NutsZinc-Plated Steel
Face MaterialThermoplastic Nylon
Grounding ScrewBrass 8-32
Strap MaterialZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.14-10 AWG
TerminationSide Wire
Product Features
- Device Type
- Single Receptacle Outlet
- Grade
- Commercial Specification Grade
FeatureTamper-Resistant|Smooth Face
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current LimitingFull Rated Current
Pole2
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
