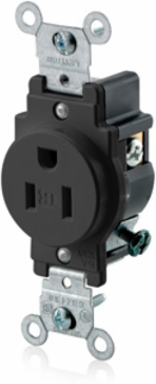

Leviton T5015-E Tamper-Resistant Single Receptacle, 15 Amp, 125 Volt, NEMA 5-15R

  • MPN: T5015-E
  • UPC: 078477441602
  • PPN: LEV-T5015-E

CAD

$7.95

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Single Receptacle Outlet, Commercial Specification Grade, Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Black

Documentation & Downloads

Specifications

Key Specifications

Country of OriginMexico
RoHS CompliantFalse

Standards and Certifications

ANSIC-73
NEMAWD-6
UL498File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited

Material Specifications

Body MaterialThermoplastic Nylon
ColorBlack
Ground ClipsBrass-Plated
Line ContactsBrass Triple-Wipe
Terminal ScrewsBrass 10-32
Clamp NutsZinc-Plated Steel
Face MaterialThermoplastic Nylon
Grounding ScrewBrass 8-32
Strap MaterialZinc-Plated Steel

Mechanical Specifications

Product IDRatings are permanently marked on device
Terminal Accom.14-10 AWG
TerminationSide Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral

Product Features

Device TypeSingle Receptacle Outlet
GradeCommercial Specification Grade
FeatureTamper-Resistant|Smooth Face

Environmental Specifications

Operating Temperature-40°C to 60°C

Electrical Specifications

Amperage15 A
Dielectric VoltageWithstands 2000V per UL498
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
Current LimitingFull Rated Current
Pole2
Voltage125 VAC

AC Horsepower Ratings

At Rated Voltage1/2 HP
Tamper-Resistant Single Receptacle, 15 Amp, 125 Volt, NEMA 5-15R
