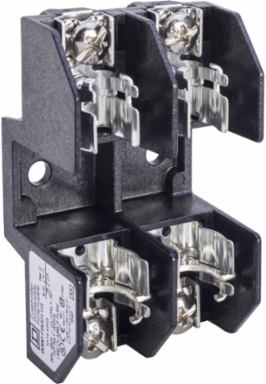

Square D 9080FB2211R Fuse Holder, Class R, 30A, 250V, 2 Pole, Thermoplastic, 3 Inch Height
- MPN: 9080FB2211R
- UPC: 785901097778
- PPN: SCH-9080FB2211R
CAD
$30.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Type S non-reversing magnetic starters are for motor control applications. NEMA Size 1 starters have ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC poly phase and has a maximum rating of 27 Amps. This 3 pole starter is for poly phase applications. These starters are available with a wide variety of replaceable coil voltages. Starter has a 220/240 VAC 50/60 Hz operating coil. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S starters are UL listed and CSA certified for global applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth1.38 in
Physical Attributes
- Fuse Size
- 0.5625 x 2 in
Wire Stripping Length0.4375 in
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CE, UL listed file E40747 CCN IZLT, CSA file 70360 class 6225 01
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- AWG 14...AWG 10 copper or aluminium
- Energy Efficiency Optimized
- False
- Material
- thermoplastic: block
- Number Of Poles
- 2
- Product Or Component Type
- fuse holder
- Returnability
- Yes
- Height Nominal
- 3 in
- [Ics] Rated Service Breaking Capacity
- 200 kA UL 512
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage<= 250 V AC/DC, <= 250 V AC/DC<= 250 V AC/DC, <= 250 V AC/DC
Local Publishable Date2025-11-13
Stocking FlagN
Device TypeLV equipment - LV fuse - disconnector
TraceabilityNo
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Connectionpressure wire clamp
Fuse TypeR
Mounting Supportsurface mount
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product9080FB
Sustainable PackagingNo
Width Nominal1.91 in
Connections - Terminalsscrew terminals 25 lbf.in AWG 14...AWG 10 copper
Package Weight(Lbs)77.111 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Ambient Air Temperature For Operation-40-257 °F, -40-257 °F
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- fuse holder
Range Of Product9080FB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
