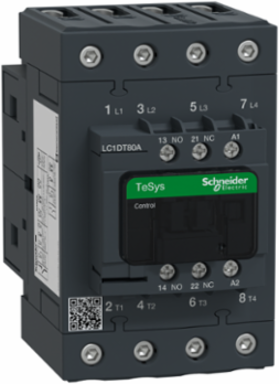

Schneider Electric LC1DT80AG7 TeSys Deca Contactor 4P 80A 120V AC Coil, IP20, 70mm Width

MPN: LC1DT80AG7
PPN: SCH-LC1DT80AG7

$690.42

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

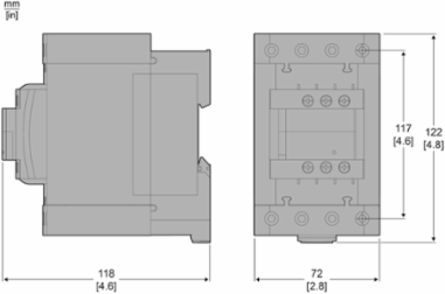

TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 80A/440V AC-1. They can be used to create motor starters for almost any type of application. It provides a 120V 60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Power contacts have a 80A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.76 inches wide and 4.72 inches deep. It weighs 2.54 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia

Depth	120 mm

Complementary Attributes

Control Circuit Type	AC 60 Hz, AC 60 Hz
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-11000 A at 440 V for power circuit conforming to IEC 60947
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	1000 A at 440 V for power circuit conforming to IEC 60947

Control Circuit Voltage Limits	0.3...0.6 Uc (-40-70 °C):drop-out AC 60 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 60 Hz
Maximum Operating Rate	3600 cyc/h at 60 °C
Minimum Switching Voltage	17 V for signalling circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1125 A gG at <= 690 V coordination type 1 for power circuit, 125 A gG at <= 690 V coordination type 2 for power circuit
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor closed 15 Gn for 11 ms), shocks contactor open 10 Gn for 11 ms)
Range	TeSys, TeSys Deca
Control Circuit Voltage	120 V
[Uc] Control Circuit Voltage	120 V, 120 V AC 60 Hz
Connections - Terminals	control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable endcontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable endpower circuit: 2 1-25 mm² - cable stiffness: flexible without cable endpower circuit: 1 1-35 mm² - cable stiffness: flexible with cable endpower circuit: 2 1-25 mm² - cable stiffness: flexible with cable endpower circuit: 1 1-35 mm² - cable stiffness: solid without cable endpower circuit: 2 1-25 mm² - cable stiffness: solid without cable endEverLink BTR screw connectorscontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable endpower circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end
Carbon Footprint Of The Distribution Phase [A4]	0.5330193797030365, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.1 kg CO2 eq., 0.06943030581471846
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	120 kg CO2 eq., 119.76184204865028
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	without built-in suppressor module
Contact Compatibility	M6
Device Short Name	LC1D
Fire Resistance	850 °C IEC 60695-2-1
Inrush Power In Va	140-140 VA 60 Hz cos phi 0.75 (at 20 °C)
Number Of Poles	4P
Overvoltage Category	III
Power Dissipation Per Pole	10.2 W AC-1
Product Or Component Type	contactor
Range Of Product	TeSys Deca
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	128 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Hv	80 A
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1331.52
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	122 mm
[Icw] Rated Short-time Withstand Current	640 A 40 °C - 10 s for power circuit900 A 40 °C - 1 s for power circuit110 A 40 °C - 10 min for power circuit260 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit80 A (at 60 °C) for power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Rated Thermal Current (Ith)	80 A
Package Weight(Lbs)	1.058 kg
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Mounting Support	plate, rail
Tightening Torque	control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2, power circuit 8 N.m screw clamp terminals 25-35 mm² hexagonal 4 mmpower circuit 5 N.m screw clamp terminals 1-25 mm² hexagonal 4 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Certificate Agency	UL, DNV, BV, CCC, CSA, LROS (Lloyds register of shipping), GL, RINA, GOST
[Ui] Rated Insulation Voltage	signalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, power circuit 690 V IEC 60947-4-1
Non-overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1.6155102246436364, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	6 kg CO2 eq., 5.685805895435857
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1503009EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1926
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Impedance	1.6 mOhm - Ith 80 A 50 Hz for power circuit
Compatibility Code	LC1D
Contactor Application	resistive load
Electrical Durability	1.4 Mcycles 80 A AC-1 <= 440 V
Heat Dissipation	4-5 W at 60 Hz
Mechanical Durability	6 Mcycles
Operating Time	4...19 ms opening12...26 ms closing
Pole Contact Composition	4 NO
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	THIEC 60068-2-30
Returnability	Yes
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Utilisation Category	AC-1
Connections Terminals	EverLink BTR screw connectors
Pep Code	ENVPEP1503009EN
Pep Verification Date	2026-03-17
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %	62
Width Nominal	70 mm
[Ie] Rated Operational Current	80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
Hold-in Power Consumption In Va	13-13 VA 60 Hz cos phi 0.3 (at 20 °C)
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Toxic Heavy Metal Free	Yes
Carbon Footprint	127.66560785424754
Environmental Disclosure	ENVPEP1503009EN
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	-40-60 °C-40-60 °C60-70 °C with derating
Pep Code	ENVPEP1503009EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Climatic Withstand	IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1503009EN
Eu Rohs Directive	Compliant
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-03-17
Psr Version	PSR-0005-ed3-2023 06 06
