Schneider Electric LC2D25BNE TeSys Deca Reversing Contactor 3P 25A 24-60V AC/DC Coil
Schneider Electric LC2D25BNE TeSys Deca Reversing Contactor 3P 25A 24-60V AC/DC Coil
- MPN: LC2D25BNE
- PPN: SCH-LC2D25BNE
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$858.97/ EA
Description

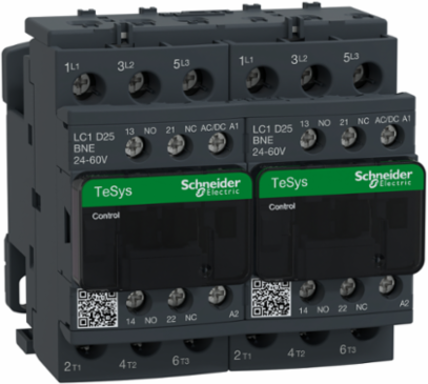

LC2D25BNE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 25A AC-3 11kW@400V, it includes a 24-60V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D25BNE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 11kW@400V. It includes a 24-60V AC/DC low consumption electronic coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 24-60V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 25A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
Specifications
Environment
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
- Height
- 85 mm
- Pollution Degree
- 3
- Flame Retardance
- V1 conforming to UL 94
- Protective Treatment
- TH IEC 60068-2-30
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Color
- Gray SE GREY 6) || Green SE GREEN 2)
- Depth
- 92 mm
Ambient Air Temperature For Operation-40-60 °C || 60-70 °C with derating
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Net Weight0.913 kg
Ambient Air Temperature For Storage-60-80 °C
Ip Degree Of ProtectionIP20 front face IEC 60529
Fire Resistance850 °C IEC 60695-2-1
Width90 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1609001EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity ProfileENVEOLI1609001EN
Halogen Content PerformanceHalogen free plastic parts & cables product
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Control Circuit Voltage Limits
- <= 0.1 Uc -40-70 °C drop-out AC/DC || 0.85...1.1 Uc -40-60 °C operational AC || 0.8...1.1 Uc -40-60 °C operational DC || 1...1.1 Uc 60-70 °C operational AC/DC
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Coil Technology
- built-in bidirectional peak limiting
- Signalling Circuit Frequency
- 25...400 Hz
- Inrush Power In W
- 14-14 W 20 °C
- Hold-In Power Consumption In Va
- 0.9-0.9 VA 20 °C) 50/60 Hz
Minimum Switching Current5 mA for signalling circuit
Hold-In Power Consumption In W0.6-0.6 W 20 °C
Inrush Power In Va15-15 VA 50/60 Hz 20 °C)
Minimum Switching Voltage17 V for signalling circuit
Heat Dissipation0.6-0.6 W 50/60 Hz
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Specifications
- Width
- 90 mm
- Weight
- 0.913 kg
- [Uc] Control Circuit Voltage
- 24...60 V AC 50/60 Hz || 24...60 V DC
- Power Dissipation Per Pole
- 3.2 W AC-1 || 1.25 W AC-3
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Mounting Support
- rail || plate
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Contactor Application
- motor control || resistive load
- Product Or Component Type
- reversing contactor
- Irms Rated Making Capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 450 A at 440 V for power circuit conforming to IEC 60947
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 40 A gG at <= 690 V coordination type 2 for power circuit
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid || control circuit screw clamp terminals 2 1-4 mm²solid || power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end || power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end || power circuit screw clamp terminals 1 1-10 mm²flexible with cable end || power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end || power circuit screw clamp terminals 1 1.5-10 mm²solid || power circuit screw clamp terminals 2 2.5-10 mm²solid
- Pole Contact Composition
- 3 NO
- Utilisation Category
- AC-1 || AC-3
- Operating Time
- 45...55 ms closing || 20...90 ms opening
- Electrical Durability
- 2 Mcycles 21 A AC-3 <= 440 V || 0.9 Mcycles 40 A AC-1 <= 440 V
- Poles Description
- 3P
- Motor Power Kw
- 5.5 kW at 220...230 V AC 50 Hz || 11 kW at 380...400 V AC 50 Hz || 11 kW at 415 V AC 50 Hz || 11 kW at 440 V AC 50 Hz || 15 kW at 500 V AC 50 Hz || 15 kW at 660...690 V AC 50 Hz
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-1
- Device Short Name
- LC2D
- Protective Cover
- with
Height85 mm
Interlocking Typemechanical
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz
Average Impedance2 mOhm - Ith 40 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit || 40 A (at 60 °C) for power circuit
Control Circuit TypeAC 50/60 Hz AC/DC electronic || DC AC/DC electronic
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Rated Breaking Capacity450 A at 440 V for power circuit conforming to IEC 60947
Product CertificationsCCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
Product NameTesys Deca green || TeSys Deca
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
RangeTeSys || TeSys Deca
Device Presentationpreassembled with reversing power busbar
[Ie] Rated Operational Current40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Maximum Operating Rate3600 cyc/h 60 °C
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2 || control circuit 2.5 N.m screw clamp terminals pozidriv No 2
Overvoltage CategoryIII
Maximum Horse Power Rating2 hp at 115 V AC 60 Hz for 1 phase motors || 3 hp at 230/240 V AC 60 Hz for 1 phase motors || 7.5 hp at 200/208 V AC 60 Hz for 3 phase motors || 7.5 hp at 230/240 V AC 60 Hz for 3 phase motors || 15 hp at 460/480 V AC 60 Hz for 3 phase motors || 20 hp at 575/600 V AC 60 Hz for 3 phase motors
Mechanical Durability15 Mcycles
[Icw] Rated Short-Time Withstand Current50 A 40 °C - 10 min for power circuit || 120 A 40 °C - 1 min for power circuit || 240 A 40 °C - 10 s for power circuit || 380 A 40 °C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
