Schneider Electric LC2D25EHE TeSys Deca Reversing Contactor 3P 25A 48-130V AC/DC Coil

MPN: LC2D25EHE
PPN: SCH-LC2D25EHE

$858.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

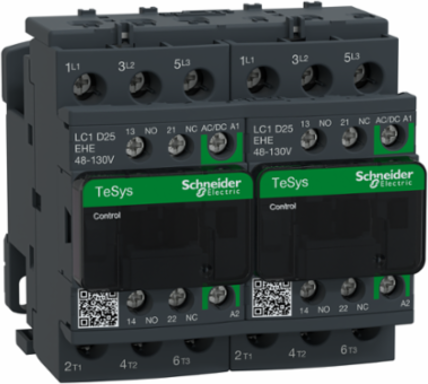

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). Rated 25A AC-3 11kW@400V, it includes a 48-130V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. It provides low consumption 48-130V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 48-130V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 25A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Sweden

Depth	92 mm

Physical Attributes

Color	Gray SE GREY 6)Green SE GREEN 2)

Complementary Attributes

Control Circuit Type	AC 50/60 Hz AC/DC electronic, DC AC/DC electronic, AC 50/60 Hz AC/DC electronic, DC AC/DC electronic
Maximum Horse Power Rating	7.5 hp at 230/240 V AC 60 Hz for 3 phase motors2 hp at 115 V AC 60 Hz for 1 phase motors3 hp at 230/240 V AC 60 Hz for 1 phase motors, 7.5 hp at 200/208 V AC 60 Hz for 3 phase motors15 hp at 460/480 V AC 60 Hz for 3 phase motors20 hp at 575/600 V AC 60 Hz for 3 phase motors
Maximum Motor Phase Current	25 A
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	450 A at 440 V for power circuit conforming to IEC 60947

Control Circuit Voltage Limits	<= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC<= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC0.85...1.1 Uc (-40-60 °C):operational AC/DC1...1.1 Uc (60-70 °C):operational AC/DC
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1450 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate	3600 cyc/h 60 °C
Minimum Switching Voltage	17 V for signalling circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contactor Application	motor control, resistive load
Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor closed15 Gn for 11 ms, shocks contactor open8 Gn for 11 ms
Mounting Support	rail, plate
Tightening Torque	power circuit 2.5 N.m screw clamp terminals Philips No 2control circuit 2.5 N.m screw clamp terminals pozidriv No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm, power circuit 1.7 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage	48...130 V
[Ie] Rated Operational Current	40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit25 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Connections - Terminals	control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solidpower circuit screw clamp terminals 2 2.5-10 mm²flexible without cable endpower circuit screw clamp terminals 1 1-10 mm²flexible with cable end, power circuit screw clamp terminals 1 1.5-10 mm²solid, power circuit screw clamp terminals 2 2.5-10 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solidpower circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end, power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end
Carbon Footprint Of The Distribution Phase [A4]	0.27038447621891004, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.1 kg CO2 eq., 0.1009329824543911
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	20 kg CO2 eq., 20.33862631578948
Local Publishable Date	2026-06-27
Stocking Flag	Y
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-163 A gG at <= 690 V coordination type 1 for power circuit40 A gG at <= 690 V coordination type 2 for power circuit
Coil Technology	built-in bidirectional peak limiting
Device Short Name	LC2D
Flame Retardance	V1 conforming to UL 94
Number Of Poles	3P
Pole Contact Composition	3 NO
Product Name	TeSys Deca Advanced
Protective Treatment	TH IEC 60068-2-30
Returnability	No
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP1609001EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %	70
Width Nominal	90 mm
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Halogen-free Status	Halogen free plastic parts and cables product
Package Weight(Lbs)	1.015 kg
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw	5.5 kW at 220...230 V AC 50 Hz11 kW at 380...400 V AC 50 Hz, 11 kW at 415 V AC 50 Hz, 11 kW at 440 V AC 50 Hz15 kW at 500 V AC 50 Hz, 15 kW at 660...690 V AC 50 Hz
Power Dissipation Per Pole	3.2 W AC-11.25 W AC-3, 1.25 W AC-3e
Utilisation Category	AC-1, AC-3, AC-3e
[Icw] Rated Short-time Withstand Current	50 A 40 °C - 10 min for power circuit120 A 40 °C - 1 min for power circuit240 A 40 °C - 10 s for power circuit380 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Uc] Control Circuit Voltage	48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
Non-overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1.551082342195552, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	7 kg CO2 eq., 7.4887695804504615
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1609001EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1922
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Impedance	2 mOhm - Ith 40 A 50 Hz for power circuit
Compatibility Code	LC2D
Fire Resistance	850 °C IEC 60695-2-1
Interlocking Type	mechanical
Overvoltage Category	III
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	reversing contactor
Range Of Product	TeSys Deca Advanced
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	30 kg CO2 eq.
Inf Motor Phase Current	25 A
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3 NO, a control circuit voltage 250V, a power circuit voltage 690V and a rated operational current 9A.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	304.41
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; FR
Height Nominal	85 mm
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit40 A (at 60 °C) for power circuit
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1signalling circuit 690 V IEC 60947-1
Rated Thermal Current (Ith)	40 A
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Climatic Withstand	IACS E10, IEC 60947-1 Annex Q category D
Halogene Performance	Halogen free plastic parts & cables product
Mercury Free	Yes
Ambient Air Temperature For Operation	-40-60 °C-40-60 °C60-70 °C with derating
Environmental Disclosure	ENVPEP1609001EN
Halogen Content Performance	Halogen free plastic parts & cables product
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1609001EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-60-80 °C, -60-80 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	29.749795697108794
Circularity Profile	ENVEOLI1609001EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29
