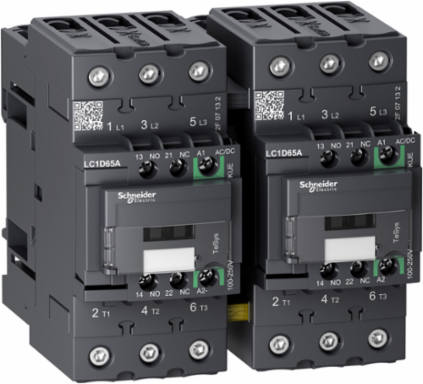

Schneider Electric LC2D65AKUE TeSys Deca Reversing Contactor 3P 65A 100-250V AC/DC Coil

MPN: LC2D65AKUE
PPN: SCH-LC2D65AKUE

$1457.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 65A/590V AC-3 (30kW@400V). Rated 65A AC-3 30kW@400V, it includes a 100-250V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. It provides low consumption 100-250V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 100-250V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 65A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Sweden

Depth	120 mm

Physical Attributes

Color	Gray SE GREY 6)Green SE GREEN 2)

Complementary Attributes

Control Circuit Type	AC 50/60 Hz AC/DC electronic, DC AC/DC electronic, AC 50/60 Hz AC/DC electronic, DC AC/DC electronic
Maximum Horse Power Rating	20 hp at 230/240 V AC 60 Hz for 3 phase motors5 hp at 115 V AC 60 Hz for 1 phase motors10 hp at 230/240 V AC 60 Hz for 1 phase motors, 20 hp at 200/208 V AC 60 Hz for 3 phase motors40 hp at 460/480 V AC 60 Hz for 3 phase motors50 hp at 575/600 V AC 60 Hz for 3 phase motors
Maximum Motor Phase Current	65 A
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	1000 A at 440 V for power circuit conforming to IEC 60947

Control Circuit Voltage Limits	<= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC<= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC0.85...1.1 Uc (-40-60 °C):operational AC/DC1...1.1 Uc (60-70 °C):operational AC/DC
Irms Rated Making Capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-11000 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate	3600 cyc/h 60 °C
Minimum Switching Voltage	17 V for signalling circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-1125 A gG at <= 690 V coordination type 1 for power circuit, 125 A gG at <= 690 V coordination type 2 for power circuit
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw	18.5 kW at 220...230 V AC 50 Hz30 kW at 380...400 V AC 50 Hz37 kW at 415 V AC 50 Hz, 37 kW at 440 V AC 50 Hz, 37 kW at 500 V AC 50 Hz, 37 kW at 660...690 V AC 50 Hz
Tightening Torque	control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mmpower circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm
Control Circuit Voltage	100...250 V
[Uc] Control Circuit Voltage	100...250 V, 100...250 V AC 50/60 Hz, 100...250 V DC
Non-overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]	3.246067132657578, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	15 kg CO2 eq., 14.867699643799337
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1607010
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1929
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	built-in bidirectional peak limiting
Device Short Name	LC2D
Interlocking Type	mechanical
Overvoltage Category	III
Power Dissipation Per Pole	9.6 W AC-16.3 W AC-3
Product Name	TeSys Deca Advanced
Protective Treatment	TH IEC 60068-2-30
Returnability	Yes
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP1607010EN
Pep Verification Date	2025-07-25
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %	64
Width Nominal	119 mm
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit80 A (at 60 °C) for power circuit
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1signalling circuit 690 V IEC 60947-1
Rated Thermal Current (Ith)	80 A
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Contactor Application	motor control, resistive load
Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
Mounting Support	rail, plate
Utilisation Category	AC-3, AC-1
[Icw] Rated Short-time Withstand Current	100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit520 A 40 °C - 10 s for power circuit, 900 A 40 °C - 1 s for power circuit110 A 40 °C - 10 min for power circuit260 A 40 °C - 1 min for power circuit
Connections - Terminals	control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solidpower circuit EverLink BTR screw connectors 2 1-25 mm²flexible without cable endpower circuit EverLink BTR screw connectors 1 1-35 mm²flexible with cable endpower circuit EverLink BTR screw connectors 2 1-25 mm²flexible with cable end, power circuit EverLink BTR screw connectors 1 1-35 mm²solid, power circuit EverLink BTR screw connectors 2 1-25 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solidpower circuit EverLink BTR screw connectors 1 1-35 mm²flexible without cable end
Carbon Footprint Of The Distribution Phase [A4]	0.22435845214847305, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.1 kg CO2 eq., 0.14553526574965853
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	95 kg CO2 eq., 94.94277609777869
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Impedance	1.5 mOhm - Ith 80 A 50 Hz for power circuit
Compatibility Code	LC2D
Fire Resistance	850 °C IEC 60695-2-1
Number Of Poles	3P
Pole Contact Composition	3 NO
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	reversing contactor
Range Of Product	TeSys Deca Advanced
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	113 kg CO2 eq.
Inf Motor Phase Current	65 A
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1055.58
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	122 mm
[Ie] Rated Operational Current	80 A (at <60 °C) at <= 440 V AC-1 for power circuit65 A (at <60 °C) at <= 440 V AC-3 for power circuit
[Ue] Rated Operational Voltage	power circuit 690 V AC 25...400 Hz
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Halogen-free Status	Halogen free plastic parts and cables product
Package Weight(Lbs)	2.349 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Climatic Withstand	IACS E10, IEC 60947-1 Annex Q category D
Halogene Performance	Halogen free plastic parts & cables product
Mercury Free	Yes
Ambient Air Temperature For Operation	-40-60 °C-40-60 °C60-70 °C with derating
Environmental Disclosure	ENVPEP1607010EN
Halogen Content Performance	Halogen free plastic parts & cables product
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1607010EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-60-80 °C, -60-80 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	113.42643659213374
Circularity Profile	ENVEOLI1607010
