Schneider Electric

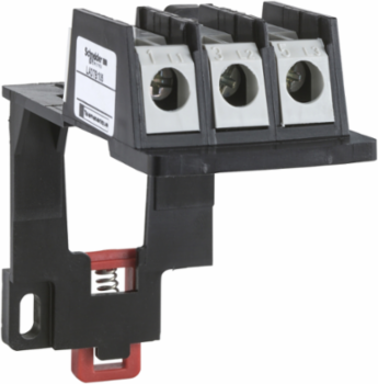

Schneider Electric LAD7B105 TeSys Deca Adapter Terminal Block for LRD15/LR3D15, 0.1 kg, 45 mm x 82 mm x 100 mm

  • MPN: LAD7B105
  • PPN: SCH-LAD7B105
  • UNSPSC: 39121521

CAD

$24.34

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

TeSys LRD terminal block for mounting of thermal overload relays LRD15, LR3D15. To be used for a separate mounting between overload relay and contactor. It provides top connections with screw clamp terminals, clip-on fixing on 35 mm DIN-rail or fixing by screws.

Features

  • Meet the need to mount Tesys Deca overload relay independent
  • New modern look & feel of all machines
  • Easier to install
  • Digital customer experience for technical documents

Documentation & Downloads

Specifications

Key Specifications

Country of OriginFrance, United States
Depth100 mm

Important Information Attributes

Persona Type IdsEU, LC, OM, OM8, PB, SC
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Local Data StatusPublishable
Return IndicatorY
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeLAD
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal82 mm
Accessory / Separate Part Categoryconnection accessory
Customs Code8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Publishable Date2026-07-16
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLAD
Product Or Component Typeterminal block
RangeTeSys
Sustainable PackagingYes
Connections Terminalsscrew terminals
Width Nominal45 mm
Nbr. Of Units In Pkg.1
Warranty In Months18

Environment Attributes Main

China Rohs RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Product CompatibilityLRD15.., LR3D15..
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold

General Attributes

Product Or Component Typeterminal block

ETIM

ETIM 8EC002027
ETIM 10EC002027
ETIM 9EC002027

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
TeSys Deca Adapter Terminal Block for LRD15/LR3D15, 0.1 kg, 45 mm x 82 mm x 100 mm
