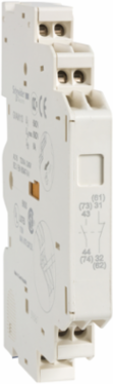

Schneider Electric GVAN113 Add-on contact block,TeSys Deca Frame 2/3,1NO+1NO,side,spring terminal,for GV2/GV3(except GV3ME)
Schneider Electric GVAN113 Add-on contact block,TeSys Deca Frame 2/3,1NO+1NO,side,spring terminal,for GV2/GV3(except GV3ME)
- MPN: GVAN113
- PPN: SCH-GVAN113
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$58.29/ EA
Description
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- UKCA
Environmental Characteristicnormal environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2207006
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2207006
Complementary
- Minimum Switching Current
- 5 mA
- [Ith] Conventional Free Air Thermal Current
- 6 A
- Protection Type
- GB2CB... circuit breaker || gG fuse 10 A
- Minimum Switching Voltage
- 17 V
- Colour
- dark grey
- Depth
- 66 mm
Height89 mm
[Ue] Rated Operational Voltage48...690 V AC || 24...240 V DC
[Ui] Rated Insulation Voltage600 V UL 508 || 690 V IEC 60947-1 || 600 V CSA C22.2 No 14
Rated Operational Power In Va300 VA 48-48 V AC-15 100000 cycles || 414 VA 690-690 V AC-15 100000 cycles || 500 VA 110-127 V AC-15 100000 cycles || 500 VA 500-500 V AC-15 100000 cycles || 650 VA 440-440 V AC-15 100000 cycles || 720 VA 230-240 V AC-15 100000 cycles || 850 VA 380-415 V AC-15 100000 cycles
Width9.3 mm
Rated Operational Power In W120 W 240 V DC-13 100000 cycles || 140 W 110 V DC-13 100000 cycles || 140 W 24 V DC-13 100000 cycles || 180 W 60 V DC-13 100000 cycles || 240 W 48 V DC-13 100000 cycles
Specifications
- Product Or Component Type
- auxiliary contact block
- Mounting Location
- left side
- Product Compatibility
- GV3P || GV2RT || GV2P || GV3L || GV2ME || GV2L || GV2LE
RangeTeSys || TeSys Deca
Pole Contact Composition1 NO + 1 NC
Device Short NameGVAN
