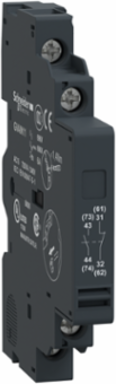

Schneider Electric GVAN11 TeSys Deca Auxiliary Contact Block 1NO+1NC Left Side Mounting

MPN: GVAN11
PPN: SCH-GVAN11

$58.29

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Features

The GVAN11 is a lateral (side-mounted) auxiliary contact block designed for use with the TeSys GV2 and GV3 manual motor starters. It provides additional electrical contacts that mirror the state of the motor starter, allowing you to send signals to PLCs, pilot lights, or other control circuits in your panel.
This block features one Normally Open (NO) and one Normally Closed (NC) contact. The NO contact is typically used for "Run" indication (e.g., turning on a green pilot light or signaling a PLC that the motor is active). The NC contact is often used for "Off" or "Fault" signaling, or for electrical interlocking with other devices.
The GVAN11 snaps onto the left-hand side of a GV2 or GV3 motor protector. Its tool-free, "clip-on" design makes it incredibly easy to add to existing installations. Because it mounts on the side, it doesn't increase the depth of the starter, which is helpful in shallow Canadian control enclosures.
Designed for industrial control, the contacts are rated for high reliability. They are suitable for standard 120V AC control circuits but are also "low-energy" compatible, making them excellent for interfacing with 24V DC PLC inputs common in modern Canadian automation systems.
The GVAN11 is rated for an operational voltage up to 600V AC and a conventional thermal current (Ith) of 6 Amps. This provides more than enough capacity for switching contactor coils, relays, or signaling devices.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Costa Rica, Czechia, France, United Kingdom, United States

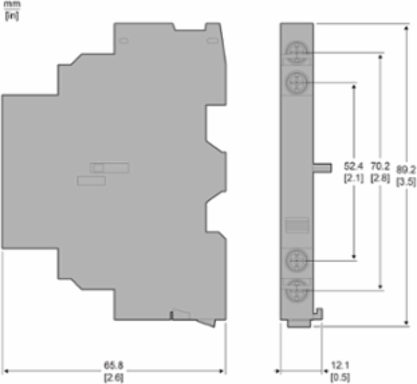

Depth	66 mm

Physical Attributes

Color	dark grey

Complementary Attributes

Rated Operational Power In Va	300 VA 48-48 V AC-15 100000 cycles414 VA 690-690 V AC-15 100000 cycles500 VA 110-127 V AC-15 100000 cycles, 500 VA 500-500 V AC-15 100000 cycles650 VA 440-440 V AC-15 100000 cycles720 VA 230-240 V AC-15 100000 cycles850 VA 380-415 V AC-15 100000 cycles
Minimum Switching Current	5 mA

Rated Operational Power In W	120 W 240 V DC-13 100000 cycles140 W 110 V DC-13 100000 cycles, 140 W 24 V DC-13 100000 cycles180 W 60 V DC-13 100000 cycles240 W 48 V DC-13 100000 cycles
Minimum Switching Voltage	17 V

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Range	TeSys, TeSys Deca
[Ui] Rated Insulation Voltage	600 V UL 508690 V IEC 60947-1, 600 V CSA C22.2 No 14
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.10743975291341279
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.2991431393480557
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Traceability	No
Service Catalog Item	Finished good
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	GVAN
Environmental Characteristic	normal environment
Mounting Location	left side
Product Availability	Stock - Normally stocked in distribution facility
Protection Type	GB2CB... circuit breakergG fuse 10 A
Software Version	v5.9.4
Tightening Torque	1.4-1.4 N.m screw clamp terminals
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2207006EN
Pep Verification Date	2025-06-17
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; FR
Height Nominal	89 mm
[Ith] Conventional Free Air Thermal Current	6 A
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509065

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Certificate Agency	CB Scheme, CE, UKCA, CCC, cULus, EAC
Carbon Footprint Of The Distribution Phase [A4]	0.014407824781466943, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0037855340432177437, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0 kg CO2 eq., 0.0025283999999999997
Local Publishable Date	2026-07-07
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2207006
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1826
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	GVAN
Energy Efficiency Optimized	False
Mechanical Durability	100000 cycles
Pole Contact Composition	1 NO + 1 NC
Product Or Component Type	auxiliary contact block
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	0.4 kg CO2 eq.
Pole Contact Comp	1 NO + 1 NC
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To add instantaneous auxiliary contact blocks in front face on TeSys GV Circuit breakers as NO and/or NC contacts for 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %	42
Width Nominal	9.3 mm
[Ue] Rated Operational Voltage	48...690 V AC24...240 V DC
Package Weight(Lbs)	42 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2207006
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-06-17
Psr Version	PSR-0005-ed2-2016 03 29

Product Compatibility	GV2P, GV2L, GV2ME, GV2LE, GV2RT, GV2LM, GV3P, GV3L
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.4273046510861532
Environmental Disclosure	ENVPEP2207006EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2207006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
