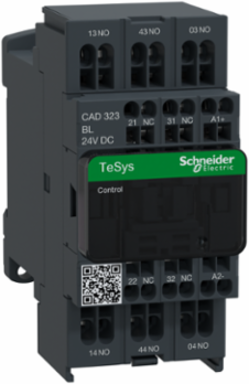

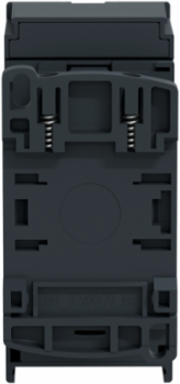

Schneider Electric CAD323BL TeSys Deca Control Relay 3NO+2NC 24V DC 10A 690V
- MPN: CAD323BL
- PPN: SCH-CAD323BL
CAD
$180.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Depth93 mm
Complementary Attributes
- Control Circuit Type
- DC low consumption
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1250 A DC IEC 60947-5-1
- Minimum Switching Current
- 5 mA
Control Circuit Voltage Limits0.1...0.25 Uc (-40-70 °C):drop-out DC0.7...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC
Maximum Operating Rate180 cyc/mn
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- shocks control relay open10 Gn for 11 ms IEC 60068-2-27shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
- Range
- TeSys, TeSys Deca
- Certificate Agency
- CB, CCC, UL, CSA, EAC, CE, UKCA
- [Ui] Rated Insulation Voltage
- 600 V UL, 600 V CSA690 V IEC 60947-5-1
- Non-overlap Time
- 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.5333878987247123, 2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 3.1662563038543174
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1102030EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- CAD
- Device Short Name
- CAD
- Insulation Resistance
- > 10 MOhm> 10 MOhm
- Operating Time
- 65...88 ms coil energisation and NO closing14...25 ms coil de-energisation and NO opening57...77 ms coil energisation and NC opening28...42 ms coil de-energisation and NC closing
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- control relay
- Range Of Product
- TeSys D control relay
- Software Version
- v5.9.4
- Time Constant
- 40 ms
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Circuit Voltage 21
- 24 V DC
- Pep Code
- ENVPEP110230EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 75
- Width Nominal
- 45 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410045
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportplate, rail
Utilisation CategoryAC-14, DC-13, AC-15
[Ue] Rated Operational Voltage<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz
Connections - Terminalsspring terminals 2 1-2.5 mm²solid without cable endspring terminals 1 1-2.5 mm²flexible without cable end, spring terminals 2 1-2.5 mm²flexible without cable end, spring terminals 1 1-2.5 mm²solid without cable end
Carbon Footprint Of The Distribution Phase [A4]0.17499315126665246, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.048458574119927315
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]15 kg CO2 eq., 15.144567567567568
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG conforming to IEC 60947-5-1
Contactor Applicationcontrol circuit
Inrush Power In W2.4-2.4 W 20 °C)
Mechanical Durability30 Mcycles
Pole Contact Composition3 NO + 2 NC
Product NameTeSys CAD
Protective TreatmentTH IEC 60068
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint20 kg CO2 eq.
Pole Contact Comp3 NO + 2 NC
Connections Terminals 55 Connections Terminalsspring terminals
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh226.665
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal99 mm
[Icw] Rated Short-time Withstand Current100 A - 1 s120 A - 500 ms140 A - 100 ms
[Uc] Control Circuit Voltage24 V DC
Hold-in Power Consumption In W2.4-2.4 W 20 °C
Package Weight(Lbs)544.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-60 °C-40-60 °C60-70 °C with derating
- Environmental Disclosure
- ENVPEP110230EN
- Ip Degree Of Protection
- IP2X VDE 0106
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint20.06766349553318
Circularity ProfileENVEOLI1102030EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP110230EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys D control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
