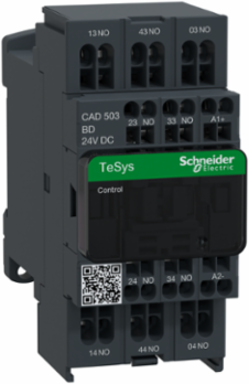

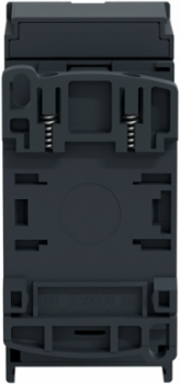

Schneider Electric CAD503BD TeSys D Control Relay, 5NO, 24V DC Coil, 10A, 690V, 45mm Width
- MPN: CAD503BD
- PPN: SCH-CAD503BD
CAD
$220.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Depth93 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 0.1...0.25 Uc (-40-70 °C):drop-out DC, 0.7...1.25 Uc (-40-60 °C):operational DC, 1...1.25 Uc (60-70 °C):operational DC
- Control Circuit Type
- DC standard
- Minimum Switching Current
- 5 mA
Irms Rated Making Capacity140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
Maximum Operating Rate180 cyc/mn
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- shocks control relay open10 Gn for 11 ms IEC 60068-2-27, shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
- Operating Time
- 53...72 ms coil energisation and NO closing, 16...24 ms coil de-energisation and NO opening
- Utilisation Category
- DC-13, AC-15, AC-14
- [Icw] Rated Short-time Withstand Current
- 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
- [Ui] Rated Insulation Voltage
- 600 V UL, 600 V CSA, 690 V IEC 60947-5-1
- Non-overlap Time
- 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.5333878987247123, 2 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 3.1662563038543174
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1102030EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- CAD
- Device Short Name
- CAD
- Insulation Resistance
- > 10 MOhm> 10 MOhm
- Pole Contact Composition
- 5 NO
- Product Name
- TeSys CAD
- Protective Treatment
- TH IEC 60068
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 38 kg CO2 eq.
- Pole Contact Comp
- 5 NO
- Connections Terminals 55 Connections Terminals
- spring terminals
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 489.465
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 99 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportrail, plate
RangeTeSys, TeSys Deca
Certificate AgencyCB, CCC, UL, CSA, EAC, CE, UKCA
[Ue] Rated Operational Voltage<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz
Connections - Terminalsspring terminals 2 1-2.5 mm²solid without cable endspring terminals 1 1-2.5 mm²flexible without cable end, spring terminals 2 1-2.5 mm²flexible without cable end, spring terminals 1 1-2.5 mm²solid without cable end
Carbon Footprint Of The Distribution Phase [A4]0.17499315126665246, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.048458574119927315
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]33 kg CO2 eq., 32.70348648648649
Local Publishable Date2025-07-09
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG conforming to IEC 60947-5-1
Contactor Applicationcontrol circuit
Inrush Power In W5.4-5.4 W 20 °C)
Mechanical Durability30 Mcycles
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecontrol relay
Range Of ProductTeSys D control relay
Software Versionv5.9.4
Time Constant28 ms
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 2124 V DC
Pep CodeENVPEP110230EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %75
Width Nominal45 mm
[Uc] Control Circuit Voltage24 V DC
Hold-in Power Consumption In W5.4-5.4 W 20 °C
Package Weight(Lbs)547 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 37.6265824144521
- Environmental Disclosure
- ENVPEP110230EN
- Ip Degree Of Protection
- IP2X front face VDE 0106
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-40-60 °C-40-60 °C, 60-70 °C with derating
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI1102030EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP110230EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys D control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
