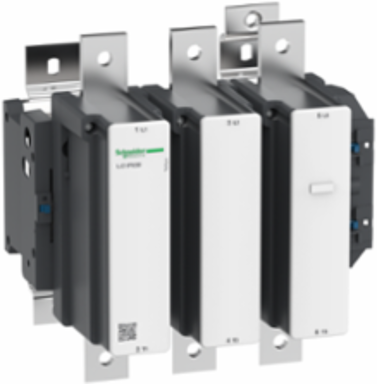

TeSys F Contactor 3P 630A 220V AC Coil IP20
Schneider Electric

Schneider Electric LC1F630M7 TeSys F Contactor 3P 630A 220V AC Coil IP20

  • MPN: LC1F630M7
  • PPN: SCH-LC1F630M7
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

TeSys F contactor, 3 poles (3NO), 630A/1000V AC-3, for motor applications up to 250kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 1200 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Czechia, France
Depth255 mm

Complementary Attributes

Control Circuit Voltage Limits
operational 0.85...1.1 Uc 40...400 Hz 55 °C), drop-out 0.25...0.5 Uc 40...400 Hz 55 °C)
Maximum Motor Phase Current
630 A
Rated Breaking Capacity
5040 A conforming to IEC 60947-4-1
Control Circuit TypeAC 40...400 Hz
Maximum Operating Rate1200 cyc/h 55 °C

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
1000 A gG at <= 440 V, 630 A aM at <= 440 V
Motor Power Kw
335 kW at 380...400 V AC 50/60 Hz (AC-3), 375 kW at 415 V AC 50/60 Hz (AC-3), 400 kW at 440 V AC 50/60 Hz (AC-3), 400 kW at 500 V AC 50/60 Hz (AC-3), 450 kW at 660...690 V AC 50/60 Hz (AC-3), 450 kW at 1000 V AC 50/60 Hz (AC-3), 200 kW at 220...230 V AC 50/60 Hz (AC-3), 100 kW at 400 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole
120 W AC-1, 48 W AC-3
Tightening Torque
control circuit 1.2 N.m, power circuit 58 N.m
Certificate Agency
LROS (Lloyds register of shipping), CB, UL, RMRoS, CSA, ABS, BV, DNV, RINA, UKCA
[Ie] Rated Operational Current
1000 A (at <40 °C) at <= 440 V AC AC-1, 630 A (at <55 °C) at <= 440 V AC AC-3
[Uc] Control Circuit Voltage
220 V, 220 V AC 40...400 Hz
[Ui] Rated Insulation Voltage
1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
Carbon Footprint Of The Distribution Phase [A4]
6.253340003983836, 6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.05025114572296826, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
4 282 kg CO2 eq., 4282.299183289618
Local Publishable Date
2025-09-13
Stocking Flag
Y
Device Type
LV equipment - LV contactor
Traceability
No
Average Life Duration
20 year(s)
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Average Impedance
0.12 mOhm - Ith 1000 A 50 Hz
Contactor Coil Voltage
220 V AC standard
Energy Efficiency Optimized
False
Inrush Power In Va
1650-1650 VA, 40...400 Hz 0.9 20 °C)
Motor Starter Type
direct on-line contactor
Number Of Poles
3P
Pole Contact Composition
3 NO
Product Or Component Type
contactor
Range
TeSys
Returnability
No
Sustainable Packaging
No
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit
unit
Energy Consumption On Product Lifetime, In Kwh
4905.6
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; China, CN
Height Nominal
304 mm
[Uimp] Rated Impulse Withstand Voltage
8 kV
Rated Thermal Current (Ith)
1000 A
Package Weight(Lbs)
18.433 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationresistive load, motor control
Operating Time40...80 ms closing, 100...200 ms opening
Power Range250-500 kW 380-440 V 3 phase, 110-220 kW 200-240 V 3 phase, 250-500 kW 480-500 V 3 phase
Utilisation CategoryAC-3, AC-1, AC-4
[Icw] Rated Short-time Withstand Current5050 A 40 °C - 10 s, 4400 A 40 °C - 30 s, 3400 A 40 °C - 1 min, 2200 A 40 °C - 3 min, 1600 A 40 °C - 10 min
[Ith] Conventional Free Air Thermal Current1000 A (at 40 °C), 1250 A
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Connections - Terminalscontrol circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 2 1-4 mm²solid without cable endcontrol circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid without cable end, power circuit bar 2 60 x 5 mm, power circuit bolted connection
Carbon Footprint Of The End-of-life Phase [C1 To C4]36 kg CO2 eq., 36.04825819072702
Carbon Footprint Of The Manufacturing Phase [A1 To A3]115 kg CO2 eq., 114.6119121195142
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1505009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeLC1F
Device Short NameLC1F
Heat Dissipation20-20 W
Mechanical Durability5 Mcycles
Mounting Supportplate
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys F
Software Versionv6.1
Total Lifecycle Carbon Footprint4 439 kg CO2 eq.
Pep CodeENVPEP1505009EN
Pep Verification Date2025-11-10
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential, In %95
Width Nominal309 mm
Hold-in Power Consumption In Va22-22 VA, 40...400 Hz 0.9 20 °C)
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Take Back
No
Mercury Free
Yes
Circularity Profile
ENVEOLI1505009EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Permissible Ambient Air Temperature Around The Device
-40-70 °C-40-70 °C
Pep Code
ENVPEP1505009EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint4439.262944749566
Environmental DisclosureENVPEP1505009EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-11-10
Psr VersionPSR-0005-ed3-EN-2023 06 06

General Attributes

Product Or Component Type
contactor
Range Of ProductTeSys F

ETIM

ETIM 8
EC000066
ETIM 9EC000066

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
