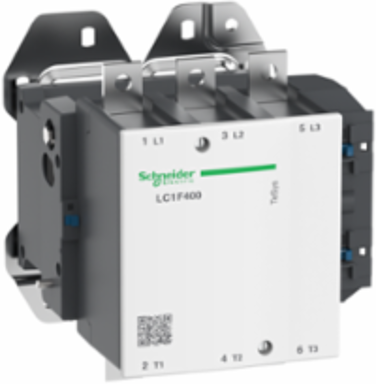

Schneider Electric LC1F400U7 TeSys F 3P Contactor, 400A, 240V AC Coil, 206mm Height
- MPN: LC1F400U7
- PPN: SCH-LC1F400U7
CAD
$4810.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys F contactor, 3 poles (3NO), 400A/1000V AC-3, for motor applications up to 200kW@400V. It provides a low sealed consumption 240V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Depth219 mm
Complementary Attributes
- Control Circuit Type
- AC 40...400 Hz
- Maximum Motor Phase Current
- 400 A
- Rated Breaking Capacity
- 3200 A conforming to IEC 60947-4-1
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc 40...400 Hz 55 °C)drop-out 0.3...0.5 Uc 40...400 Hz 55 °C)
Maximum Operating Rate2400 cyc/h 55 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- resistive load, motor control
- Power Range
- 110-220 kW 480-500 V 3 phase, 110-220 kW 380-440 V 3 phase, 110-220 kW 200-240 V 3 phase, 250-500 kW 480-500 V 3 phase
- Certificate Agency
- UL, BV, DNV, CB, CSA, ABS, LROS (Lloyds register of shipping), RMRoS, RINA, UKCA
- [Uc] Control Circuit Voltage
- 240 V, 240 V AC 40...400 Hz
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solid without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid without cable end, power circuit bar 2 30 x 5 mmpower circuit lugs-ring terminals 2 150-150 mm², power circuit bolted connection
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 17.4072247, 17 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 55 kg CO2 eq., 55.34456887
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1505009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 0.26 mOhm - Ith 500 A 50 Hz
- Contactor Coil Voltage
- 240 V AC standard
- Energy Efficiency Optimized
- False
- Inrush Power In Va
- 1075-1075 VA, 40...400 Hz 0.9 20 °C)
- Motor Starter Type
- direct on-line contactor
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Power Dissipation Per Pole
- 65 W AC-142 W AC-3
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 3 555 kg CO2 eq.
- Control Circuit Voltage 18 Control Circuit Voltage
- 240 V
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 3985.8
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 206 mm
- [Icw] Rated Short-time Withstand Current
- 3600 A 40 °C - 10 s2400 A 40 °C - 30 s1700 A 40 °C - 1 min1200 A 40 °C - 3 min1000 A 40 °C - 10 min
- [Ui] Rated Insulation Voltage
- 1000 V IEC 60947-4-11500 V VDE 0110 group C
- Hold-in Power Consumption In Va
- 15-15 VA, 40...400 Hz 0.9 20 °C)
- Carbon Footprint (Kg Co2 Eq Total Life Cycle)
- 3555.1638
- Package Weight(Lbs)
- 9.41 kg
- Warranty (In Months)
- 18
- Customs Code
- 8536490065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Motor Power Kw75 kW at 400 V AC 50/60 Hz (AC-4), 200 kW at 380...400 V AC 50/60 Hz (AC-3)220 kW at 415 V AC 50/60 Hz (AC-3)250 kW at 440 V AC 50/60 Hz (AC-3)257 kW at 500 V AC 50/60 Hz (AC-3)280 kW at 660...690 V AC 50/60 Hz (AC-3)185 kW at 1000 V AC 50/60 Hz (AC-3)110 kW at 220...230 V AC 50/60 Hz (AC-3)
Utilisation CategoryAC-3, AC-1, AC-4
[Ie] Rated Operational Current500 A (at <40 °C) at <= 440 V AC AC-1, 400 A (at <55 °C) at <= 440 V AC AC-3
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]3.019654764, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.02426561
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 479 kg CO2 eq., 3479.368086
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating400 A aM at <= 440 V500 A gG at <= 440 V
Compatibility CodeLC1F
Device Short NameLC1F
Heat Dissipation14-14 W
Mechanical Durability10 Mcycles
Mounting Supportplate
Operating Time40...65 ms closing100...170 ms opening
Pole Contact Composition3 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys F
Software Versionv6.1
Tightening Torquecontrol circuit 1.2 N.mpower circuit 35 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1505009EN
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential In %95
Width Nominal213 mm
[Ith] Conventional Free Air Thermal Current500 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Rated Thermal Current (Ith)500 A
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Total ( Kg Co2 Eq.) Total Life Cycle3555.1638
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1505009EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C-40-70 °C
- Pep Code
- ENVPEP1505009EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint3555.1638
Environmental DisclosureENVPEP1505009EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
