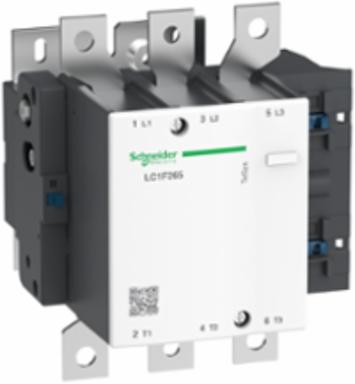

Schneider Electric LC1F265M7 TeSys F 3P Contactor, 265A, Coil 220V AC, IP20, 2400 Cycles/Hour
- MPN: LC1F265M7
- PPN: SCH-LC1F265M7
CAD
$3245.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys F contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth213 mm
Complementary Attributes
- Control Circuit Type
- AC 40...400 Hz
- Maximum Motor Phase Current
- 265 A
- Rated Breaking Capacity
- 2120 A conforming to IEC 60947-4-1
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc 40...400 Hz 55 °C)drop-out 0.15...0.2 Uc 40...400 Hz 55 °C)
Maximum Operating Rate2400 cyc/h 55 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- motor control, resistive load
- Power Range
- 55-100 kW 200-240 V 3 phase110-220 kW 480-500 V 3 phase, 110-220 kW 380-440 V 3 phase
- Certificate Agency
- RINA, RMRoS, CSA, CB, UL, BV, ABS, LROS (Lloyds register of shipping), DNV, UKCA
- [Uc] Control Circuit Voltage
- 220 V, 220 V AC 40...400 Hz
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solid without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid without cable end, power circuit bar 2 32 x 4 mmpower circuit lugs-ring terminals 1 240-240 mm², power circuit connector 1 240-240 mm², power circuit bolted connection
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 13 kg CO2 eq., 13.334938618727316
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 146 kg CO2 eq., 145.57277109922885
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2405025
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Impedance
- 0.3 mOhm - Ith 350 A 50 Hz
- Contactor Coil Voltage
- 220 V AC standard
- Heat Dissipation
- 8-8 W
- Mechanical Durability
- 10 Mcycles
- Mounting Support
- plate
- Operating Time
- 40...65 ms closing100...170 ms opening
- Pole Contact Composition
- 3 NO
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Range Of Product
- TeSys F
- Software Version
- v6.1
- Tightening Torque
- control circuit 1.2 N.mpower circuit 35 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 2080.5
- Energy Model - Installation [A5]
- Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Height Nominal
- 203 mm
- [Icw] Rated Short-time Withstand Current
- 2200 A 40 °C - 10 s1230 A 40 °C - 30 s950 A 40 °C - 1 min620 A 40 °C - 3 min480 A 40 °C - 10 min
- [Ui] Rated Insulation Voltage
- 1000 V IEC 60947-4-11500 V VDE 0110 group C
- Hold-in Power Consumption In Va
- 10-10 VA, 40...400 Hz 0.9 20 °C)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Motor Power Kw132 kW at 380...400 V AC 50/60 Hz (AC-3)140 kW at 415 V AC 50/60 Hz (AC-3), 140 kW at 440 V AC 50/60 Hz (AC-3)160 kW at 500 V AC 50/60 Hz (AC-3), 160 kW at 660...690 V AC 50/60 Hz (AC-3)147 kW at 1000 V AC 50/60 Hz (AC-3)75 kW at 220...230 V AC 50/60 Hz (AC-3), 51 kW at 400 V AC 50/60 Hz (AC-4)
Utilisation CategoryAC-4, AC-1, AC-3
[Ie] Rated Operational Current350 A (at <40 °C) at <= 440 V AC AC-1, 265 A (at <55 °C) at <= 440 V AC AC-3
[Ue] Rated Operational Voltage<= 1000 V AC-1, <= 1000 V AC-1, <= 690 V AC-3, <= 690 V AC-3, <= 690 V AC-4, <= 690 V AC-4, <= 460 V DC, <= 460 V DC<= 1000 V AC-1, <= 1000 V AC-1, <= 690 V AC-3, <= 690 V AC-3, <= 690 V AC-4, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]1.4443516272678052, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.6719249041219971, 0.7 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]853 kg CO2 eq., 852.7279617803161
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating315 A aM at <= 440 V400 A gG at <= 440 V
Compatibility CodeLC1F
Device Short NameLC1F
Inrush Power In Va650-650 VA, 40...400 Hz 0.9 20 °C)
Motor Starter Typedirect on-line contactor
Number Of Poles3P
Overvoltage CategoryIII
Power Dissipation Per Pole37 W AC-121 W AC-3
Product Or Component Typecontactor
RangeTeSys
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 014 kg CO2 eq.
Pep CodeENVPEP2405025EN
Pep Verification Date2025-08-11
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
Recyclability Potential In %91
Width Nominal201.5 mm
[Ith] Conventional Free Air Thermal Current350 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Rated Thermal Current (Ith)350 A
Package Weight(Lbs)7.950 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2405025
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C-40-70 °C
- Pep Code
- ENVPEP2405025EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint1013.751948029662
Environmental DisclosureENVPEP2405025EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-11
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys F
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
