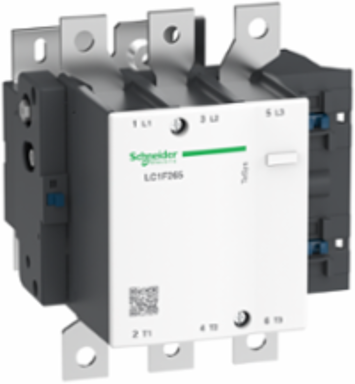

Schneider Electric LC1F265L7 TeSys F Contactor 3P 265A AC-3 208V Coil
- MPN: LC1F265L7
- PPN: SCH-LC1F265L7
CAD
$3245.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The TeSys F Contactor from Schneider Electric is engineered for robust performance in demanding automation and control applications. Designed for three-phase operations, this particular model handles up to 265A in AC-3 duty at a coil voltage of 208V, making it an ideal choice for controlling motors and other high-power devices. With its reliable construction, this contactor ensures lasting durability and efficient operation within various industrial environments. Whether used in starters or as part of a broader control system, its functionality is crucial for maintaining seamless operations in various applications.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 350 A AC-1, 265 A AC-3 (at <= 440 V)
- Motor Power
- 132 kW at 380...400 V AC, 140 kW at 415 V AC, 140 kW at 440 V AC, 160 kW at 500 V AC, 160 kW at 660...690 V AC, 147 kW at 1000 V AC, 75 kW at 220...230 V AC (AC-3), 51 kW at 400 V AC (AC-4)
- Rated Short-Time Withstand Current
- 2200 A 10 s, 1230 A 30 s, 950 A 1 min, 620 A 3 min, 480 A 10 min (at 40 °C)
- Rated Operational Voltage
- <= 1000 V AC-1, <= 690 V AC-3, <= 690 V AC-4, <= 460 V DC
- Control Circuit Voltage Limits
- Operational 0.85...1.1 Uc, Drop-out 0.15...0.2 Uc 40...400 Hz
- Power Dissipation per Pole
- 37 W AC-1, 21 W AC-3
- Average Impedance
- 0.3 mOhm at 350 A 50 Hz
- Hold-in Power Consumption
- 10 VA 40...400 Hz
- Operating Time
- 40...65 ms closing, 100...170 ms opening
- Mechanical Durability
- 10 M cycles
- Dimensions (HxWxD)
- 203 mm x 201.5 mm x 213 mm (7.99 in x 7.93 in x 8.39 in)
- Operating Altitude
- 3000 m (9842.5 ft) without derating
- IP Degree of Protection
- IP20 front face with shrouds IEC 60529
- Standards
- EN 60947-4-1, EN 60947-1, IEC 60947-4-1, JIS C8201-4-1, IEC 60947-1
- Compliance
- California Prop 65 Compliant, REACh Compliant (Exemptions), EU RoHS Compliant (Exemptions), Mercury Free, China RoHS Compliant
Amperage265 A AC-3
Rated Breaking Capacity2120 A IEC 60947-4-1
Conventional Free Air Thermal Current350 A (40 °C)
Coil Voltage208 V AC 40...400 Hz
Poles3P
Overvoltage CategoryIII
Inrush Power650 VA 40...400 Hz
Tightening TorqueControl circuit 1.2 N.m, Power circuit 35 N.m
Maximum Operating Rate2400 cycles/hour at 55 °C
Mounting SupportPlate
Net Weight7.44 kg (16.40 lb)
MaterialPower pole contact composition: 3 NO
Rated Insulation Voltage1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
Product CertificationsLROS, CB, ABS, DNV, RINA, CCC, UL, BV, RM, RoS, UKCA
PVC FreeYes
