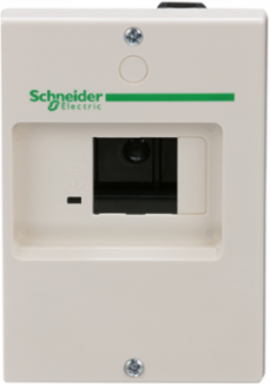

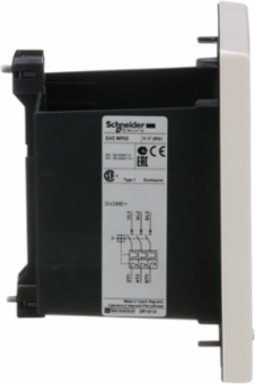

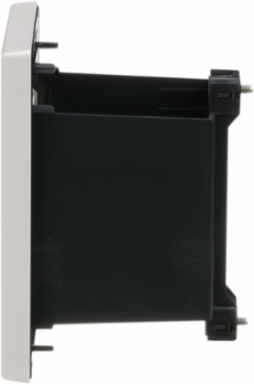

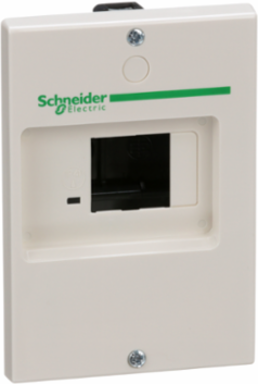

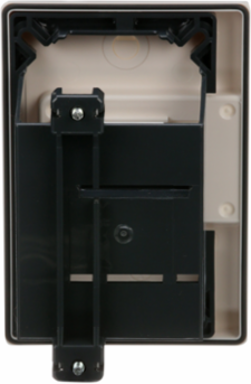

Schneider Electric GV2MP03 TeSys Reduced Flush Mounting Enclosure, IP41, 93mm Width, 133mm Height
- MPN: GV2MP03
- PPN: SCH-GV2MP03
CAD
$25.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2 motor starter protector and a LC1D IEC contactor assembled together into one device. This enclosure is for GV2ME manual starters and protectors with or without accessories Enclosure is flush mounting with front face reduced. Auxiliary contacts can only be added on the right hand side of the GV2ME. The enclosure rating is NEMA 1 and IP41. Enclosure is 5.24 inches tall, 3.66 inches wide and 3.86 inches deep. This enclosure is not UL listed, but is CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Depth98 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UKCA, CE
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.27101588417741107
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.0365746315442872
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2107010
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Auxiliary Mounting Location
- right
- Device Short Name
- GV2MP
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Protection 44
- IP41
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functions
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 78.84
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential, In %
- 37
- Width Nominal
- 93 mm
- Enclosure/Cubicle Description
- reduced flush mounting
- Package Weight(Lbs)
- 194.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.013919054837572525, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0005194545469271566, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]32 kg CO2 eq., 32.31390170956989
Local Publishable Date2026-03-25
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeGV2MP
Environmental Characteristicstandard environment
Product Or Component Typeenclosure
Range Of ProductTeSys GV2
Software Versionv6.1
Total Lifecycle Carbon Footprint34 kg CO2 eq.
Enclosure Descriptionreduced flush mounting
Pep CodeENVPEP2107010EN
Pep Verification Date2025-10-20
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal133 mm
Accessory / Separate Part Categorymounting accessory
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 33.63593073467609
- Environmental Disclosure
- ENVPEP2107010EN
- Ip Degree Of Protection
- IP41 front face
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2107010EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2107010
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilityGV2ME
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-10-20
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- enclosure
Range Of ProductTeSys GV2
ETIM
- ETIM 8
- EC000712
ETIM 9EC000712
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
