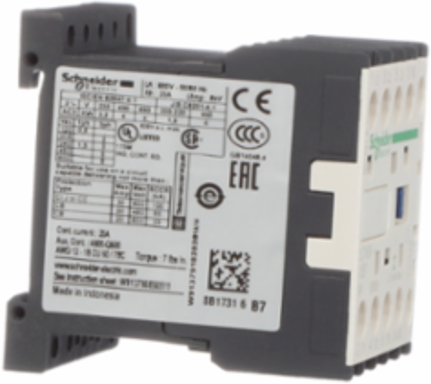

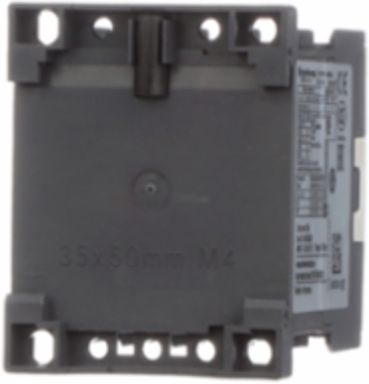

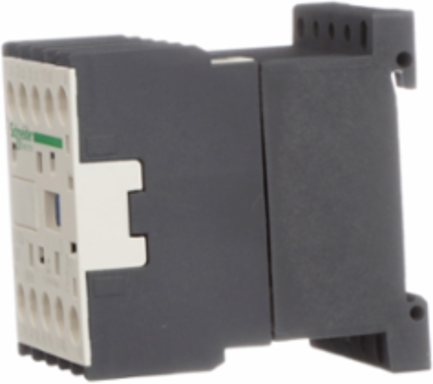

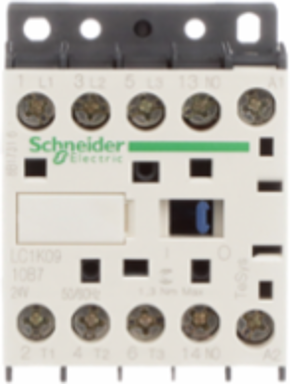

Schneider Electric LC1K0910B7 TeSys K Contactor, 3P, 9A, 24V AC Coil, Compact Size

MPN: LC1K0910B7
PPN: SCH-LC1K0910B7
UNSPSC: 39121529

$67.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

LC1K0910B7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 24V 50/60Hz AC coil and 1NO auxiliary contact. LC1K0910B7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 24V 50/60Hz AC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Features

This contactor features a high-efficiency 24V AC coil at 50/60 Hz, making it perfectly compatible with your standard low-voltage industrial control transformer systems. By utilizing a low-draw 4.5 VA hold-in power consumption, it prevents excessive voltage drops and minimizes energy loss inside your electrical enclosure.
This heavy-duty 3-pole configuration safely switches standard AC-3 and AC-3e inductive motor loads up to 9 Amps or 4 kW at 400V, ensuring reliable starting and stopping without arc damage. For non-inductive, resistive heating or lighting control setups (AC-1 duty cycle), the contacts are robust enough to withstand continuous currents up to 20 Amps.
Engineered with a ultra-compact 45mm frame width, the TeSys K series allows you to maximize DIN rail density and pack more functionality into restricted machine footprints. Its flexible physical profile supports both standard 35mm DIN rail snap-on installation and traditional panel screw-fixing, solving tight panel clearance issues without requiring custom layout retrofits.
The contactor comes factory-equipped with one built-in, instantaneous 1 NO (Normally Open) auxiliary contact, giving you immediate feedback routing for PLC inputs, status pilot lights, or secondary control logic circuits. This eliminates the upfront expense and spatial hassle of buying external auxiliary contact add-on blocks for simple automation feedback loops.
Featuring rugged screw clamp terminals designed to hold solid or stranded wires securely, this module maintains high-torque connection integrity even in machinery prone to harmonic vibrations. With an electrical durability rating of up to 1.3 million cycles at nominal load and a mechanical life of 10 million cycles, it drastically reduces maintenance overhead and costly machine downtime.
Built to Schneider Electric's stringent industrial standards, the LC1K0910B7 carries full CE, UL, CSA, CCC, and EAC certifications, guaranteeing compliance with local electrical codes and facility safety inspectors. It also carries the Green Premium badge, verifying full compliance with RoHS and REACH regulations for sustainable, environmentally responsible commercial and industrial operations.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia
Depth	57 mm

Weight	178 g

Complementary Attributes

Irms Rated Making Capacity	110 A AC for power circuit conforming to IEC 60947, 110 A AC for signalling circuit conforming to IEC 60947
Icw Rated Short Time Withstand Current	90 A 50 °C - 1 s for power circuit85 A 50 °C - 5 s for power circuit80 A 50 °C - 10 s for power circuit60 A 50 °C - 30 s for power circuit45 A 50 °C - 1 min for power circuit40 A 50 °C - 3 min for power circuit20 A 50 °C - >= 15 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit110 A - 100 ms for signalling circuit
Uc Control Circuit Voltage	AC 50/60 Hz, 24 V
Control Circuit Type	AC 50/60 Hz
Maximum Motor Phase Current	9 A
Minimum Switching Current	5 mA for signalling circuit
Uimp Rated Impulse Withstand Voltage	8 kV

Rated Breaking Capacity	110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 6094780 A at 500 V conforming to IEC 6094770 A at 660...690 V conforming to IEC 60947
Ie Rated Operational Current	9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
Ue Rated Operational Voltage	power circuit <= 690 V AC <= 400 Hz, signalling circuit <= 690 V AC <= 400 Hz
Control Circuit Voltage Limits	operational: 0.8...1.15 Uc (at = 0.20 Uc (at <50 °C)
Maximum Operating Rate	3600 cyc/h
Minimum Switching Voltage	17 V for signalling circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660
Electrical Durability	1.3 Mcycles 9 A AC-3 <= 440 V, 1.3 Mcycles 9 A AC-3e <= 440 V0.16 Mcycles 20 A AC-1 <= 690 V, 0.02 Mcycles 54 A AC-4 <= 440 V
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw	4 kW 380...415 V AC 50/60 Hz AC-3e, 4 kW 440/690 V AC 50/60 Hz AC-3e4 kW 380...415 V AC 50/60 Hz AC-4, 4 kW 440/690 V AC 50/60 Hz AC-42.2 kW 220...230 V AC 50/60 Hz AC-34 kW 380...415 V AC 50/60 Hz AC-3, 4 kW 440/690 V AC 50/60 Hz AC-3, 2.2 kW 220...230 V AC 50/60 Hz AC-3e, 2.2 kW 220...230 V AC 50/60 Hz AC-4
Protective Treatment	TC IEC 60068, TC DIN 50016
Utilisation Category	AC-3, AC-3e, AC-1, AC-4
Certificate Agency	CB Scheme, CCC, UL, CSA, EAC, CE, UKCA
Carbon Footprint Of The Distribution Phase A4	0.35276280880753375, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.024250978113109528
Carbon Footprint Of The Use Phase B2 B3 B4 B6	57 kg CO2 eq., 56.65241524409137
Local Publishable Date	2026-06-27
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Impedance	3 mOhm - Ith 20 A 50 Hz for power circuit
Compatibility Code	LC1K
Device Short Name	LC1K
Inrush Power In Va	30-30 VA (at 20 °C)
Non Overlap Distance	0.5 mm
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	58 kg CO2 eq.
Database Version	2024-01
Height Nominal	58 mm
Nbr. Of Units In Pkg.	1
Hold In Power Consumption In Va	4.5-4.5 VA (at 20 °C)
Functional Unit Description	Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional Unit Unit	unit
Recyclability Potential In %	63

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Contactor Application	motor control, resistive load
Flame Retardance	V1 conforming to UL 94requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
Mechanical Robustness	shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
Operating Time	10...20 ms coil de-energisation and NO opening, 10...20 ms coil energisation and NO closing
Signalling Circuit Frequency	<= 400 Hz, <= 400 Hz
Connections Terminals	2 0.75-4 mm²flexible without cable end, 2 0.34-1.5 mm²flexible with cable endscrew clamp terminalsscrew clamp terminals 1 1.5-4 mm²solid, screw clamp terminals 1 0.75-4 mm²flexible without cable endscrew clamp terminals 1 0.34-2.5 mm²flexible with cable end, screw clamp terminals 2 1.5-4 mm²solid
Ith Conventional Free Air Thermal Current	20 A (at 60 °C) for power circuit, 10 A (at 50 °C) for signalling circuit
Carbon Footprint Of The End Of Life Phase C1 To C4	0.25617272259369844, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.9 kg CO2 eq., 0.91401512148607
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1503003
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2448
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	without built-in suppressor module
Device Application	control
Heat Dissipation	1.3-1.3 W
Mechanical Durability	10 Mcycles
Number Of Poles	3P
Pole Contact Composition	3 NO
Product Or Component Type	contactor
Range Of Product	TeSys K
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
