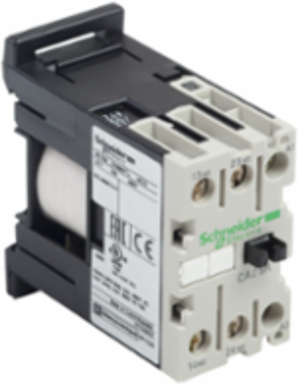

Schneider Electric CA2SK20F7 TeSys SK Control Relay 2NO 10A 110V AC 27mm
- MPN: CA2SK20F7
- PPN: SCH-CA2SK20F7
CAD
$103.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth55.5 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz
- Maximum Operating Rate
- 1200 cyc/h
Control Circuit Voltage Limitsdrop-out: 0.2...0.75 Uc (at <50 °C)operational: 0.85...1.1 Uc (at <50 °C)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gL conforming to VDE 0660, 10 A gL conforming to IEC 60947
- Utilisation Category
- AC-15, DC-13
- [Ue] Rated Operational Voltage
- <= 690 V <= 400 Hz, <= 690 V <= 400 Hz<= 690 V <= 400 Hz, <= 690 V <= 400 Hz
- Connections - Terminals
- screw clamp terminals 2 0.35-1.5 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible without cable end, screw clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible without cable endscrew clamp terminals 1 0.35-6 mm²flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.1741398844597613
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.6 kg CO2 eq., 0.6213248859540139
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1503003
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- CA2SK
- Device Short Name
- CA2SK
- Inrush Power In Va
- 16-16 VA (at 20 °C)
- Operating Time
- 6...8 ms coil de-energisation and NO opening7...14 ms coil energisation and NO closing
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- control relay
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 58 kg CO2 eq.
- Pole Contact Comp
- 2 NO
- Control Circuit Voltage 21 Control Circuit Voltage
- 110 V
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 140.16
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 56 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 55 °C)
- Hold-in Power Consumption In Va
- 4.2-4.2 VA (at 20 °C)
- Package Weight(Lbs)
- 121.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportrail, plate
Certificate AgencyCB Scheme, cULus, EAC, CE, UKCA
[Ui] Rated Insulation Voltage690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14
Carbon Footprint Of The Distribution Phase [A4]0.23979943744781793, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.016485215458911535, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]57 kg CO2 eq., 56.65241524409139
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contactor Applicationcontrol circuit
Heat Dissipation1.4-1.4 W
Mechanical Durability10 Mcycles
Pole Contact Composition2 NO
Product NameTeSys CASK
Protective TreatmentTC IEC 60068
Range Of ProductTeSys SK control relay
Software Versionv6.2.4
Tightening Torque0.8 N.m screw clamp terminals pozidriv No 1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 21110 V
Pep CodeENVPEP1503003EN
Pep Verification Date2026-03-23
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %63
Width Nominal27 mm
[Uc] Control Circuit Voltage110 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-70 °C, -50-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 57.704164667411895
- Environmental Disclosure
- ENVPEP1503003EN
- Ip Degree Of Protection
- IP2X
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI1503003
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m) without derating
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1503003EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys SK control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
