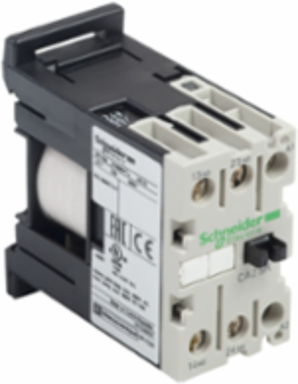

Schneider Electric CA2SK20M7 TeSys SK Control Relay, 2NO Contacts, 690V, 10A, 27mm Width
- MPN: CA2SK20M7
- PPN: SCH-CA2SK20M7
CAD
$103.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V 50/60Hz AC control circuit, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth55.5 mm
Complementary Attributes
- Control Circuit Voltage Limits
- drop-out: 0.2...0.75 Uc (at <50 °C), operational: 0.85...1.1 Uc (at <50 °C)
- Maximum Operating Rate
- 1200 cyc/h
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gL conforming to VDE 0660, 10 A gL conforming to IEC 60947
- Operating Time
- 6...8 ms coil de-energisation and NO opening, 7...14 ms coil energisation and NO closing
- Certificate Agency
- CB Scheme, cULus, EAC, CE, UKCA
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14
- Carbon Footprint Of The Distribution Phase [A4]
- 0.23979943744781793, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.016485215458911535, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 57 kg CO2 eq., 56.65241524409139
- Local Publishable Date
- 2025-02-26
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contactor Application
- control circuit
- Heat Dissipation
- 1.4-1.4 W
- Mechanical Durability
- 10 Mcycles
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- control relay
- Range
- TeSys
- Returnability
- No
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 58 kg CO2 eq.
- Pole Contact Comp
- 2 NO
- Control Circuit Voltage 21 Control Circuit Voltage
- 220 V
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 140.16
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 56 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 55 °C)
- Hold-in Power Consumption In Va
- 4.2-4.2 VA (at 20 °C)
- Package Weight(Lbs)
- 121.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportplate, rail
Utilisation CategoryDC-13, AC-15
[Ue] Rated Operational Voltage<= 690 V <= 400 Hz, <= 690 V <= 400 Hz<= 690 V <= 400 Hz, <= 690 V <= 400 Hz
Connections - Terminalsscrew clamp terminals 2 0.35-1.5 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible without cable endscrew clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible without cable end, screw clamp terminals 1 0.35-6 mm²flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1741398844597613
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.6 kg CO2 eq., 0.6213248859540139
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1503003
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeCA2SK
Device Short NameCA2SK
Inrush Power In Va16-16 VA (at 20 °C)
Pole Contact Composition2 NO
Product NameTeSys CASK
Protective TreatmentTC IEC 60068
Range Of ProductTeSys SK control relay
Software Versionv6.2.4
Tightening Torque0.8 N.m screw clamp terminals pozidriv No 1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 21220 V
Pep CodeENVPEP1503003EN
Pep Verification Date2026-03-23
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential, In %63
Width Nominal27 mm
[Uc] Control Circuit Voltage220 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-70 °C, -50-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 57.704164667411895
- Environmental Disclosure
- ENVPEP1503003EN
- Ip Degree Of Protection
- IP2X
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI1503003
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m) without derating
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1503003EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys SK control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
