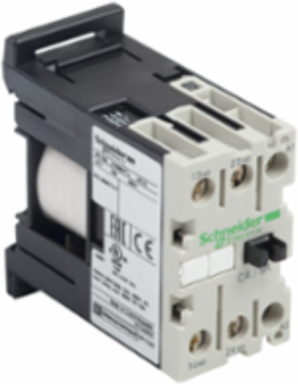

Schneider Electric CA3SK20BD TeSys SK Control Relay, 2 NO, 24V DC, 27mm Width, 10A/690V
- MPN: CA3SK20BD
- PPN: SCH-CA3SK20BD
CAD
$135.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Features
- Engineered with a specialized 24V DC standard control coil, this compact unit requires only 2.2 Watts of sealing power to actuate. This ultra-low power draw allows a programmable logic controller (PLC) or transistor I/O card to trigger the relay directly, saving hardware costs and reducing panel wiring complexity by eliminating the need for intermediate interposing relays.
- This mini control relay features a 2 NO (Normally Open) instantaneous contact configuration built with a conventional thermal current rating of 10 A. This optimized dual-pole layout provides the exact density needed to switch multiple auxiliary control loops, manage electrical interlocking systems, or route physical run-state feedback back to your central automation processing unit.
- This device features an integrated, factory-installed bidirectional peak-limiting diode suppressor that clamps dangerous electrical noise at the source. By absorbing destructive inductive back-EMF spikes when the 24V coil de-energizes, it actively shields nearby microprocessors, solid-state electronics, and communication buses from data corruption or component failure.
- Part of the ultra-compact TeSys SK series, this mini control relay features a slim 27mm width footprint that maximizes utilization zones inside tight junction boxes. It supports dual-installation flexibility—clamping securely onto standard 35mm DIN rails or anchoring directly via screw fixing holes—allowing technicians to rapidly drop replacements into preexisting panelboard layouts.
- Built for demanding manufacturing environments, this unit maintains a maximum operating rate of up to 1,200 cycles per hour and delivers an outstanding mechanical lifespan of 10,000,000 switching cycles. The robust internal contacts resist mechanical fatigue from rapid, repetitive worker or system inputs, ensuring continuous process uptime across years of multi-shift operation.
Documentation & Downloads
Specifications
Key Specifications
- [Ue] Rated Operational Voltage
- <= 690 V <= 400 Hz
- [Uc] Control Circuit Voltage
- 24 V DC
- Product Or Component Type
- control relay
- Range
- TeSys
- Utilisation Category
- DC-13 || AC-15
Control Circuit TypeDC standard
Contactor Applicationcontrol circuit
Product NameTeSys CASK
Pole Contact Composition2 NO
Device Short NameCA3SK
Complementary
- Height
- 56 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 55 °C)
- Hold-In Power Consumption In W
- 2.2-2.2 W 20 °C
- Net Weight
- 0.132 kg
- Maximum Operating Rate
- 1200 cyc/h
- Inrush Power In W
- 2.2-2.2 W 20 °C)
- Operating Time
- 4...6 ms coil de-energisation and NO opening || 8...12 ms coil energisation and NO closing
- Depth
- 55.5 mm
- Heat Dissipation
- 2.2-2.2 W
Control Circuit Voltage Limitsoperational: 0.85...1.1 Uc (at <50 °C) || drop-out: 0.1...0.75 Uc (at <50 °C)
Mounting Supportrail || plate
Associated Fuse Rating10 A gL conforming to VDE 0660 || 10 A gL conforming to IEC 60947
Connections - Terminalsscrew clamp terminals 1 1.5-6 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.5-6 mm²flexible without cable end || screw clamp terminals 1 0.35-6 mm²flexible with cable end || screw clamp terminals 2 0.35-1.5 mm²flexible with cable end || screw clamp terminals 2 0.35-2.5 mm²flexible without cable end
Tightening Torque0.8 N.m screw clamp terminals pozidriv No 1
Mechanical Durability10 Mcycles
Width27 mm
[Ui] Rated Insulation Voltage690 V IEC 60947 || 690 V VDE 0110 group C || 690 V BS 5424 || 690 V UL 508 || 690 V CSA C22.2 No 14
Environment
- Product Certifications
- CB Scheme || cULus || EAC || CE || UKCA
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1
- Protective Treatment
- TC IEC 60068
- Operating Altitude
- 2000 m without derating
Ambient Air Temperature For Operation-20-50 °C
Ambient Air Temperature For Storage-50-70 °C
Ip Degree Of ProtectionIP2X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
