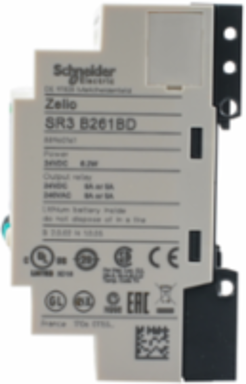

Zelio Logic Smart Relay, 26 I/O, 24V DC, 10 Relay Outputs, Clock, Display

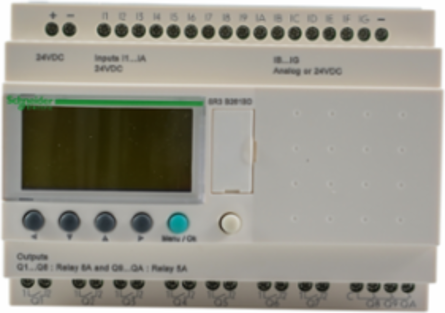

Zelio Logic Smart Relay, 26 I/O, 24V DC, 10 Relay Outputs, Clock, Display

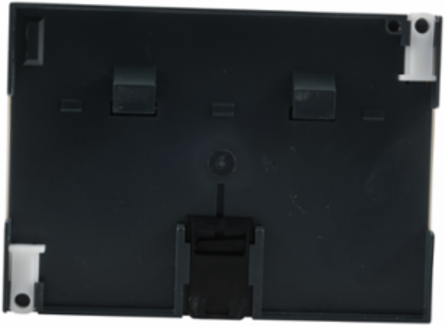

Zelio Logic Smart Relay, 26 I/O, 24V DC, 10 Relay Outputs, Clock, Display

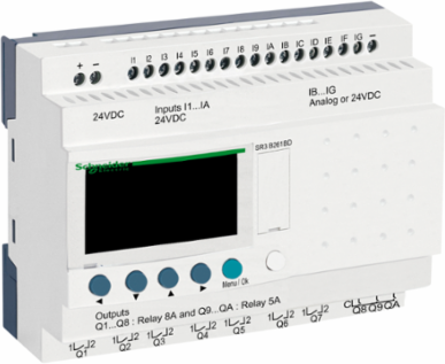

Zelio Logic Smart Relay, 26 I/O, 24V DC, 10 Relay Outputs, Clock, Display

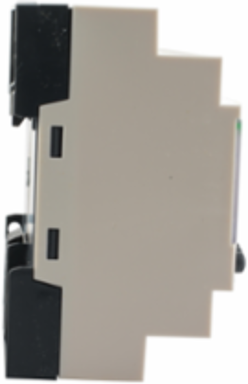

Zelio Logic Smart Relay, 26 I/O, 24V DC, 10 Relay Outputs, Clock, Display
Schneider Electric

Schneider Electric SR3B261BD Zelio Logic Smart Relay, 26 I/O, 24V DC, 10 Relay Outputs, Clock, Display

  • MPN: SR3B261BD
  • PPN: SCH-SR3B261BD
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $452.54

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

    Features

    • Packed with 16 discrete inputs and 10 robust relay outputs, this compact smart relay provides extensive point capacity for complex automation tasks. It allows industrial maintenance technicians and machine builders to consolidate multiple timers, counters, and control relays into a single, space-saving DIN-rail module, drastically reducing enclosure wiring and hardware footprints.
    • Operating on a regulated 24V DC power input, this smart relay interfaces seamlessly with industry-standard control topologies and sensors while minimizing energy consumption. The 0-10V analog input capability enables direct integration with temperature transmitters, pressure sensors, and level transducers, providing a cost-effective alternative to full-scale PLCs for small-scale process control.
    • This Zelio Logic module supports both traditional Ladder Logic (Ladders) for plant electricians familiar with schematic relays, and Function Block Diagram (FBD/SFC) programming for systems engineers managing advanced workflows. This flexibility simplifies the commissioning process and ensures that internal maintenance staff can quickly interpret, modify, and optimize code for automated conveyors, pumping stations, or packaging machinery.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, United States

    Complementary Attributes

    Maximum Altitude Transport
    3048 m
    Maximum Supply Current
    190 mA without extension)300 mA with extensions)
    Maximum Permissible Voltage30 V analogue input circuit

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Conversion Error
    +/- 5 % 25 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 5 % 25 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit, +/- 6.2 % 55 °C analogue input circuit
    Current State 1 Guaranteed
    >= 1.2 mA IB...IG used as discrete input circuit), >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit)>= 1.2 mA IB...IG used as discrete input circuit), >= 1.2 mA IB...IG used as discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit), >= 2.2 mA I1...IA and IH...IR discrete input circuit)
    Number Or Control Scheme Lines
    0-500 FBD, 0-240 ladder
    Switching Capacity In Ma
    >= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
    Voltage State 0 Guaranteed
    <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit, <= 5 V IB...IG used as discrete input circuit<= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V I1...IA and IH...IR discrete input circuit, <= 5 V IB...IG used as discrete input circuit
    Certificate Agency
    GL, C-tick, CSA, UL, GOST
    Carbon Footprint Of The Distribution Phase [A4]
    0.7941290734453625, 0.8 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.1 kg CO2 eq., 0.07517082377885803
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    202 kg CO2 eq., 201.7502153207909
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Device Type
    PLC System - PLC CPU
    Traceability
    Yes
    Average Life Duration
    20 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Dangerous Goods Code
    LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Checks
    program memory on each power up
    Clock Drift
    12 min/year 0-55 °C6 s/month 25-25 °C
    Conversion Time
    smart relay cycle time analogue input circuit
    Cycle Time
    6-90 ms
    Immunity To Microbreaks
    1 ms
    Lsb Value
    39 mV analogue input circuit
    Operating Distance
    10 m between stations, with screened cable (sensor not isolated) analogue input circuit
    Overvoltage Category
    III conforming to IEC 60664-1
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Zelio Logic
    Returnability
    Yes
    Software Version
    v6.2.2
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    253 kg CO2 eq.
    Pep Code
    ENVPEP0604006EN
    Pep Verification Date
    2024-11-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    referent product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Us] Rated Supply Voltage
    24 V
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536410060
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Current State 0 Guaranteed<= 0.5 mA IB...IG used as discrete input circuit), <= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit)<= 0.5 mA IB...IG used as discrete input circuit), <= 0.5 mA IB...IG used as discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit), <= 0.75 mA I1...IA and IH...IR discrete input circuit)
    Environmental CharacteristicEMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone Blow voltage directive conforming to IEC 61131-2
    Repeat Accuracy+/- 2 % 55 °C analogue input circuit, +/- 2 % 55 °C analogue input circuit, +/- 2 % 55 °C analogue input circuit+/- 2 % 55 °C analogue input circuit, +/- 2 % 55 °C analogue input circuit, +/- 2 % 55 °C analogue input circuit
    Temperature Probe TypeNTC 10k 25 °C, NTC 1000k 25 °C, KTY81 210/220/221/222/250, Pt 500
    Voltage State 1 Guaranteed>= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit, >= 15 V IB...IG used as discrete input circuit>= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V I1...IA and IH...IR discrete input circuit, >= 15 V IB...IG used as discrete input circuit
    Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solidscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]1.001736206909394, 1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]49 kg CO2 eq., 49.00265589919458
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI0604006EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1846
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Clockwith
    Contacts Type And CompositionNO relay output
    Counting Frequency1 kHz discrete input
    Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
    Local Displaywith
    Mechanical Durability10000000 cycles relay output
    Operating Rate In Hz0.1 Hz at Ie)relay output10 Hz no load)relay output
    Power Dissipation In W10 W with extensions6 W without extension
    Product Or Component Typemodular smart relay
    Response Time10 ms from state 0 to state 1)relay output5 ms from state 1 to state 0)relay output
    Reverse Polarity Protectionwith
    Supply Voltage Limits19.2-30 V
    Tightening Torque0.5 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
    Disturbance Radiated/Conductedclass B EN 55022-11 group 1
    Package Weight(Lbs)379.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    252.62390732411907
    Environmental Disclosure
    ENVPEP0604006EN
    Ip Degree Of Protection
    IP20 IEC 60529 terminal block)IP40 IEC 60529 front panel)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP0604006EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI0604006EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % without condensation or dripping water
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    modular smart relay
    Range Of ProductZelio Logic

    ETIM

    ETIM 8
    EC001417
    ETIM 9EC001417

    Output Attributes

    Output Thermal Current
    5 A for 2 outputs relay output, 8 A for 8 outputs relay output
    Output Voltage Limits
    24...250 V AC relay output)5...30 V DC relay output)
    Number Of Outputs10 relay

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Analogue Input Range
    0...10 V, 0...24 V
    Analogue Input Number
    6
    Analogue Input Type
    common mode
    Discrete Input Number
    16 IEC 61131-2 Type 1
    Discrete Input Voltage
    24 V DC
    Input Impedance12 kOhm IB...IG used as analogue input circuit, 12 kOhm IB...IG used as discrete input circuit7.4 kOhm I1...IA and IH...IR discrete input circuit
    Analogue Input Resolution8 bits
    Discrete Input Current4 mA
    Discrete Input Typeresistive
    Input Compatibility3-wire proximity sensors PNP discrete input
