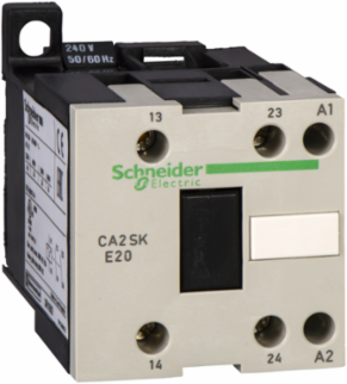

Schneider Electric CA2SKE20U7 TeSys SK Control Relay, 2NO, 240V AC Coil, <= 690V, 45mm Width
- MPN: CA2SKE20U7
- PPN: SCH-CA2SKE20U7
CAD
$201.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TeSys SK Control Relay from Schneider Electric is a robust solution designed for automation and control applications. Featuring two normally open (2NO) contacts, this relay operates effectively with a 240V AC coil and supports a current rating of up to 10A, making it suitable for a variety of industrial settings. With its reliable performance, it plays a critical role in ensuring the seamless operation of control circuits, enhancing both efficiency and safety in automation processes. This relay is an essential component for professionals seeking dependable control solutions in their systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Depth68 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz
- Maximum Operating Rate
- 1200 cyc/h
Control Circuit Voltage Limitsdrop-out: 0.2...0.75 Uc (at <50 °C)operational: 0.85...1.1 Uc (at <50 °C)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gL conforming to VDE 0660, 10 A gL conforming to IEC 60947
- Utilisation Category
- AC-15, DC-13
- [Ue] Rated Operational Voltage
- <= 690 V <= 400 Hz, <= 690 V <= 400 Hz<= 690 V <= 400 Hz, <= 690 V <= 400 Hz
- Connections - Terminals
- screw clamp terminals 2 0.35-1.5 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible without cable end, screw clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible without cable endscrew clamp terminals 1 0.35-6 mm²flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.26049024039022145
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.9 kg CO2 eq., 0.9294198707245992
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1503003
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- CA2SKE
- Device Short Name
- CA2SKE
- Inrush Power In Va
- 23-23 VA (at 20 °C)
- Operating Time
- 6...8 ms coil de-energisation and NO opening7...14 ms coil energisation and NO closing
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- control relay
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 58 kg CO2 eq.
- Control Circuit Voltage 21
- 240 V
- Pep Code
- ENVPEP1503003EN
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 63
- Width Nominal
- 45 mm
- [Uc] Control Circuit Voltage
- 240 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportrail, plate
Certificate AgencyCB Scheme, cULus, EAC, CE, UKCA
[Ui] Rated Insulation Voltage690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14
Carbon Footprint Of The Distribution Phase [A4]0.35870824940541357, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.024659702463330477, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]57 kg CO2 eq., 56.65241524409139
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contactor Applicationcontrol circuit
Heat Dissipation1.5-1.5 W
Mechanical Durability10 Mcycles
Pole Contact Composition2 NO
Product NameTeSys CASK
Protective TreatmentTC IEC 60068
Range Of ProductTeSys SK control relay
Software Versionv6.2.4
Tightening Torque0.8 N.m screw clamp terminals pozidriv No 1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 21 Control Circuit Voltage240 V
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh140.16
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal58 mm
[Ith] Conventional Free Air Thermal Current10 A (at 55 °C)
Hold-in Power Consumption In Va4.9-4.9 VA (at 20 °C)
Package Weight(Lbs)181.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-70 °C, -50-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 58.22569330707495
- Environmental Disclosure
- ENVPEP1503003EN
- Ip Degree Of Protection
- IP2X
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI1503003
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m) without derating
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1503003EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys SK control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
