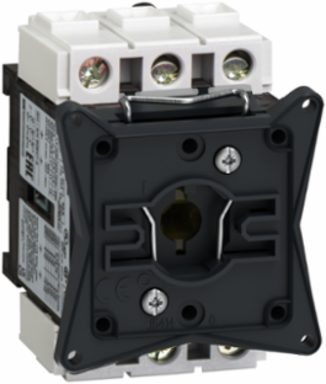

Schneider Electric V01 TeSys Vario Switch Body, 3 Poles, 20A, 690V, IP20, 74mm Height
- MPN: V01
- PPN: SCH-V01
CAD
$56.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
V01 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 20A 690V, it is used in motor applications up to 5.5kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Germany, France
Depth60 mm
Complementary Attributes
- Rated Operational Power In W
- 7.5 kW 690 V AC-3), 4 kW 230...240 V AC-23A), 5.5 kW 400...415 V AC-23A), 11 kW 690 V AC-23A), 3 kW 230...240 V AC-3), 4 kW 400...415 V AC-3), 5.5 kW 500 V AC-3), 7.5 kW 500 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-21, 30000 cycles DC-1...5
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6, shocks 11 ms 30 Gn) IEC 60068-2-27
- Network Type
- AC, DC
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 6-6 mm² flexible - with cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03897335354520308, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.017535493953134616
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 29 kg CO2 eq., 28.971796700100345
- Local Publishable Date
- 2025-12-03
- Stocking Flag
- N
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 3 NO
- Energy Efficiency Optimized
- False
- Intermittent Duty Class
- 30
- Network Frequency
- 50/60 Hz
- Performance Level
- high performance
- Product Name
- TeSys VARIO
- Protective Treatment
- TC
- Returnability
- Yes
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 2.1-2.1 N.m screw clamp terminals
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2211006EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Czech Republic, CZ
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential, In %
- 57
- Width Nominal
- 55 mm
- [Icw] Rated Short-time Withstand Current
- 300 A 400 V 1 s
- [Ith] Conventional Free Air Thermal Current
- 20 A
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 174.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A
Mounting Supportsymmetrical rail, plate
Certificate AgencyUL, CSA, GL, UKCA, CCC
Rated Conditional Short-circuit Current10 kA 400 V 20 A aM, 10 kA 400 V 20 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5303688605432406, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.2633669206730842
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeV
Device Short NameV
Fire Resistance960 °C IEC 60695-2-1
Mechanical Durability100000 cycles
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeswitch body
RangeTeSys
Software Versionv6.1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint31 kg CO2 eq.
Thermal Current 320 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh433.62
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal74 mm
[Icm] Rated Short-circuit Making Capacity1 kA 400 V at Ipeak
[Ie] Rated Operational Current11 A AC-23 Ue: 400 V
[Ithe] Conventional Enclosed Thermal Current16 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211006EN
- Halogen Content Performance
- Halogen free product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Halogene PerformanceHalogen free product
Toxic Heavy Metal FreeYes
Carbon Footprint30.822041328815008
Eu Rohs DirectiveCompliant
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
