Schneider Electric VCF01 TeSys Vario 3-Pole Switch Disconnector, 20A, IP65, 60x60 mm, Emergency Stop
- MPN: VCF01
- PPN: SCH-VCF01
- UNSPSC: 39122233
CAD
$111.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

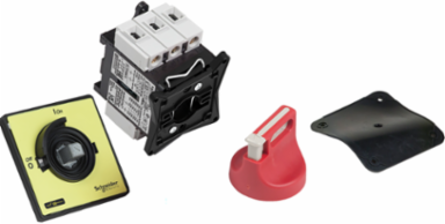

VCF01 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 5.5kW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF01 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 5.5kW@400V AC-23. It consists of a V01 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V01 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ01), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).
Features
- The TeSys Vario VCF01 is a compact, door-mounted switch disconnector featuring a standard 60x60mm yellow front plate with a 4-screw fixing design. This ensures a drop-in replacement or clean installation on electrical cabinet doors, saving space inside the enclosure while providing immediate external access for operators.
- Engineered for high performance, this 3-pole (3P) unit features a 20A conventional free-air thermal current rating and safely handles high-voltage applications up to 690V AC. It is fully optimized for demanding AC-23 motor switching tasks up to 5.5kW at 400V, preventing contact wear and maintaining electrical reliability under frequent inductive load variations.
- Equipped with a highly visible red rotary handle against a bright yellow faceplate, this emergency stop switch functions seamlessly as an absolute isolation device. The handle is built with an integrated padlocking mechanism that accepts 1 to 3 padlocks.
- Boasting an IP65 ingress protection rating at the interface when mounted correctly on the door, this switch disconnector prevents dust, dirt, and low-pressure water jets from penetrating the electrical panel.
- Built to endure rigorous daily operations, the VCF01 features a mechanical and electrical durability rating of up to 100,000 cycles. It holds comprehensive certifications including UL, CSA, IEC 60947-3, CCC, and UKCA, guaranteeing that your control panels pass code inspections and comply with international industrial standards without unexpected hardware failures.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, France |
|---|
| Weight | 250 g |
|---|
Complementary Attributes
| Rated Operational Power In W | 7.5 kW 500 V AC-23A)4 kW 230...240 V AC-23A), 5.5 kW 400...415 V AC-23A), 7.5 kW 500 V AC-3), 11 kW 690 V AC-23A)3 kW 230...240 V AC-3)4 kW 400...415 V AC-3), 5.5 kW 690 V AC-3) |
|---|---|
| Icm Rated Short Circuit Making Capacity | 1 kA 400 V at Ipeak |
| Ie Rated Operational Current | 11 A AC-23 Ue: 400 V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Rated Conditional Short Circuit Current | 10 kA 400 V 20 A aM, 10 kA 400 V 20 A gG |
|---|---|
| Icw Rated Short Time Withstand Current | 300 A 400 V 1 s |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | handle, switch |
| Mounting Support | handle door, switch door |
| Connections Terminals | power circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 6-6 mm² flexible - with cable end |
| Carbon Footprint Of The Distribution Phase A4 | 0.04871669193150384, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.02191936744141827 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 29 kg CO2 eq., 28.971796700100345 |
| Local Publishable Date | 2026-06-27 |
| Device Type | LV equipment - LV switch - disconnector |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Base Dimension | 60 x 60 mm |
| Contacts Type And Composition | 3 NO |
| Device Short Name | VCF |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Intermittent Duty Class | 30 |
| Mechanical Durability | 100000 cycles |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | emergency stop switch disconnector |
| Range | TeSys |
| Rotary Handle Mounting Style | direct |
| Software Version | v6.1 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 31 kg CO2 eq. |
| Handle Color | red |
| Thermal Current 3 | 20 A |
| Data Source | extrapolated product |
| Width Nominal | 60 mm |
| Customs Code | 8536509025 |
| Ithe Conventional Enclosed Thermal Current | 16 A |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 57 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Making Capacity | 200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A |
| Network Type | AC, DC |
| Certificate Agency | CCC, GL, CSA, UL, UKCA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.6629610756790507, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 1.579208650841355 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | main switch disconnector |
| Control Type | rotary handle |
| Electrical Durability | 100000 cycles AC-2130000 cycles DC-1...5 |
| Fixing Mode | by 4 screws handle |
| Marking | 0 - 1 |
| Mechanical Robustness | vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Performance Level | high performance |
| Product Name | TeSys VARIO |
| Protective Treatment | TC |
| Returnability | Yes |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Suitability For Isolation | yes |
| Tightening Torque | power circuit 2.1-2.1 N.m screw clamp terminals |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Handle Front Plate Color | yellow |
| Database Version | 2023-02 |
| Height Nominal | 74 mm |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 20 A |
| Halogen Free Status | Halogen free product |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 433.62 |
