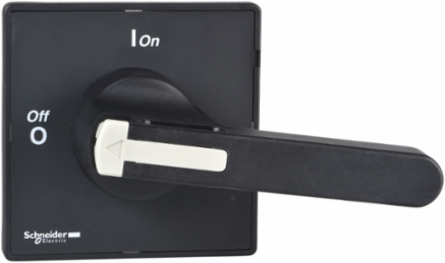

Schneider Electric KAF3PZ TeSys Vario Rotary Handle with Black Front Plate, 90 x 90 mm, IP65
- MPN: KAF3PZ
- PPN: SCH-KAF3PZ
CAD
$36.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
KAF3PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a black long padlockable handle with a black 90x90mm front plate for mounting on door with 4 screw fixing. It operates V5 and V6 switch bodies directly or through a shaft extension. Intended for main switch usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting.
