Schneider Electric

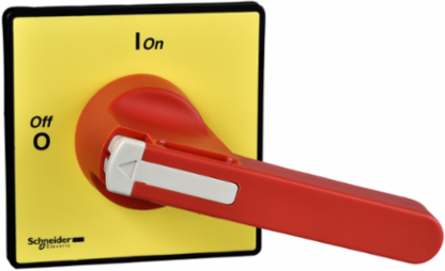

Schneider Electric KCF3PZ Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V5/V6

Handles and front plates,TeSys Control,red handle,yellow front,1-3 padlocking,4 screws fixing,for V5/V6
  • MPN: KCF3PZ
  • PPN: SCH-KCF3PZ

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$36.22/ EA

Description

TeSys Vario operating handle, for TeSys Vario switch bodies V5-V6. It provides a red long handle and yellow front plate 90x90mm, for main and emergency stop switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).

Specifications

Environment

Ip Degree Of Protection
IP65

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2211006
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
China Rohs Regulation
X
Eu Rohs Directive
Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A

Complementary

Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Handle Front Plate Colour
yellow
Marking
0 - 1
Net Weight
0.16 kg
Height90 mm
Fixing Modeby 4 screws
Base Dimension90 x 90 mm
Width90 mm

Specifications

Handle Colour
red
Range
TeSys
Device Short Name
KCF3
Product Or Component Typerotary handle
Product CompatibilityV5 || V6
