Balluff

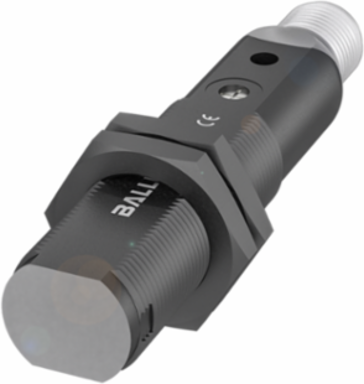

Balluff BLE 18KF-PA-1PP-S4-C Through-beam sensors - BOS00CK

Through-beam sensors - BOS00CK
  • MPN: BLE 18KF-PA-1PP-S4-C
  • PPN: BAL-BOS00CK

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$90.18/ EA

Description

Through-beam sensors - BOS00CK

Specifications

Operating Voltage
10...30 VDC
Interface
PNP Normally open (NO); PNP Normally closed (NC) Pins 4-2
Turn-off Delay
1.67 ms
Rated Operating Current
100 mA
Voltage Drop Max
2 V
Dimension
D8 18 x 81.5 mm
Material Sensing Surface
PMMA
Connection
Connector, M12x1-Male, 4-pin
Ambient Temperature Range
-25...55 B0C
Vibration Resistance
10...55 Hz, 0.5 mm, 3x30 min
Country of Origin
Hungary
Series
18KF
Range0...20 m
Switching Frequency250 Hz
Turn-on Delay1.67 ms
No-load Current30 mA
Ripple Max8 %
Housing MaterialPBT
Light typeInfrared
IP RatingIP67
Shock Resistance30 g, 11 ms, 3x6
MTTF (40 B0C)855 a
Approval/ConformityCE; cULus; WEEE
TrademarkGlobal
