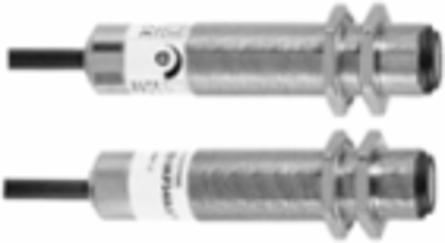

Telemecanique Sensors XU2S18PP340L5 Safety thru beam pair photo electric sensors, Preventa Safety detection, security light curtain XU2 S, of body, 750...1200 mm, 12...24 V
Telemecanique Sensors XU2S18PP340L5 Safety thru beam pair photo electric sensors, Preventa Safety detection, security light curtain XU2 S, of body, 750...1200 mm, 12...24 V
- MPN: XU2S18PP340L5
- PPN: TES-XU2S18PP340L5
- UNSPSC: 32151802
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$403.57/ EA
Description
This product is part of the XUSL range, an offer of safety light curtains. This security light curtain for safety of personnel operating dangerous machinery. It has 1 safety output OSSD PNP with a sensing distance of 8m. It is furnished with 5m cable for electrical connection. It is a sensor curtain with a rated supply voltage of 12V to 24V DC, a current consumption of 35mA at no-load and switching capacity of 100mA. Available functions are built-in muting and light or dark programmable switching. It is an IP67 rated product. It weighs 0.485kg. It is ideal for all the dangerous machines with free access requiring a zone protection for the security of operators and machines. This product is certified by CE. It complies with EN/IEC 61496-2, EN/IEC 61496-1 and EN/IEC 60825-1 standards. Safety light curtains for detecting intrusion into free access hazardous areas. Electro-sensitive protective equipment (ESPE) designed to help protect people operating or working in the vicinity of machinery, by stopping the hazardous movement of parts as soon as one of the light beams is broken.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 30 gn 3 axes : 3 times EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP67 conforming to EN/IEC 60529
- Safety Reliability Data
- PFH = 5.5E-7 1/h with muting function IEC 61508 || PFH = 4.6E-7 1/h IEC 61508
StandardsEN/IEC 60825-1 || EN/IEC 61496-2 || EN/IEC 61496-1
Vibration Resistance7 gn 10-55 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Safety Levelcan reach PL = c associated with module XPSCM correctly wired EN/ISO 13849-1 || can reach category 2 associated with module XPSCM correctly wired EN/ISO 13849-1 || type 2 IEC 61496-1-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111230EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111208EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- pre-cabled
- Switching Frequency
- 500 Hz maximum
- Cable Composition
- 3 x 0.34 mm² transmitter || 4 x 0.34 mm² receiver
- Maximum Voltage Drop
- <1.5 V closed)
- Marking
- CE
- Tightening Torque
- 24 N.m fixing nut
- Cable Outer Diameter
- 5 mm
- Material
- nickel plated brass case || PMMA (polymethyl methacrylate) lenses
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
Current Consumption<= 35 mA no-load
Maximum Delay Response1 ms
Cable Length5 m
Line Of Sight Typealong case axis
Net Weight0.485 kg
Function Availablebuilt-in muting function || light or dark programmable switching
Maximum Delay Recovery1 ms
Detection Systemtransmitter-receiver system
[Us] Rated Supply Voltage12...24 V DC 10...30 V reverse polarity protection
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 1 safety outputs OSSD PNP
- Device Short Name
- XU2S
Product Or Component Typesafety thru-beam pair photo-electric sensors
[Sn] Nominal Sensing Distance8-8 m
