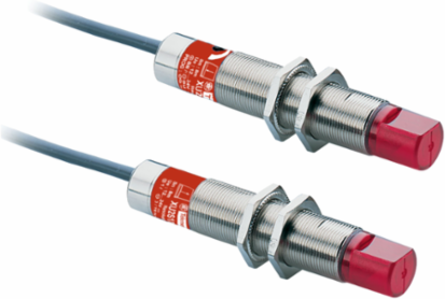

Telemecanique Sensors XU2S18PP340WL5 Safety thru beam pair photo electric sensors, Preventa Safety detection, security light curtain XU2 S, of body, 750...1200 mm, 12...24 V
- MPN: XU2S18PP340WL5
- PPN: TES-XU2S18PP340WL5
- UNSPSC: 32151802
CAD
$422.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Safety thru beam pair photo electric sensors, Preventa Safety detection, security light curtain XU2 S, of body, 750...1200 mm, 12...24 V
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 1 safety outputs OSSD PNP
- Device Short Name
- XU2S
Product Or Component Typesafety thru-beam pair photo-electric sensors
[Sn] Nominal Sensing Distance8-8 m
Complementary
- Electrical Connection
- pre-cabled
- Switching Frequency
- 500 Hz maximum
- Cable Composition
- 3 x 0.34 mm² transmitter || 4 x 0.34 mm² receiver
- Maximum Voltage Drop
- <1.5 V closed)
- Marking
- CE
- Tightening Torque
- 24 N.m fixing nut
- Cable Outer Diameter
- 5 mm
- Material
- nickel plated brass case || PMMA (polymethyl methacrylate) lenses
- Switching Capacity In Ma
- <= 100 mA overload and short-circuit protection)
Current Consumption<= 35 mA no-load
Maximum Delay Response1 ms
Cable Length5 m
Line Of Sight Type90° to case axis
Net Weight0.485 kg
Function Availablebuilt-in muting function || light or dark programmable switching
Maximum Delay Recovery1 ms
Detection Systemtransmitter-receiver system
[Us] Rated Supply Voltage12...24 V DC 10...30 V reverse polarity protection
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 30 gn 3 axes : 3 times EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP67 conforming to EN/IEC 60529
- Safety Reliability Data
- PFH = 5.5E-7 1/h with muting function IEC 61508 || PFH = 4.6E-7 1/h IEC 61508
StandardsEN/IEC 60825-1 || EN/IEC 61496-2 || EN/IEC 61496-1
Vibration Resistance7 gn 10-55 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Safety Levelcan reach PL = c associated with module XPSCM correctly wired EN/ISO 13849-1 || can reach category 2 associated with module XPSCM correctly wired EN/ISO 13849-1 || type 2 IEC 61496-1-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111230EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111208EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
