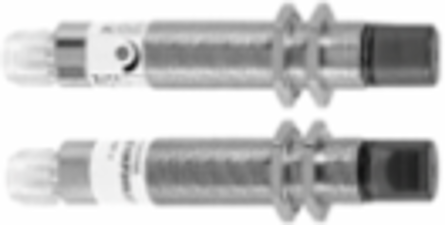

Telemecanique Sensors XU2S18PP340WD Safety thru beam pair photo electric sensors, Preventa Safety detection, security light curtain XU2 S, of body, 750...1200 mm, 12...24 V
Telemecanique Sensors XU2S18PP340WD Safety thru beam pair photo electric sensors, Preventa Safety detection, security light curtain XU2 S, of body, 750...1200 mm, 12...24 V
- MPN: XU2S18PP340WD
- PPN: TES-XU2S18PP340WD
- UNSPSC: 32151802
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$384.82/ EA
Description
This product is part of the XUSL range, an offer of safety light curtains. This security light curtain for body detection. It supports 1 safety outputs OSSD PNP with a sensing distance of 8m. It is furnished with 4-pin M12 male connector for electrical connection. It is a safety light curtain with a rated supply voltage of 12V to 24V DC. It is an IP67 rated product. The casing is made of nickel plated brass with polymethyl methacrylate lenses. It weighs 0.155kg. It is ideal for all the dangerous machines with free access requiring a zone protection for the security of operators and machines. This product is certified by CE. It meets EN/IEC 61496-2, EN/IEC 61496-1 and EN/IEC 60825-1 standards. It is an optical protection system with infrared beams that provides protection for operators in the vicinity of hazardous zones. Any moving parts in this zone are stopped if at least one of the light beams is broken. The safety light curtain can only be used on machines on which the movement of working components can be stopped at any time during a hazardous phase. This light curtain provides a stop signal, not a control instruction.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 30 gn 3 axes : 3 times EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP67 conforming to EN/IEC 60529
- Safety Reliability Data
- PFH = 5.5E-7 1/h with muting function IEC 61508 || PFH = 4.6E-7 1/h IEC 61508
StandardsEN/IEC 61496-2 || EN/IEC 61496-1 || EN/IEC 60825-1
Vibration Resistance7 gn 10-55 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Safety Levelcan reach PL = c associated with module XPSCM correctly wired EN/ISO 13849-1 || can reach category 2 associated with module XPSCM correctly wired EN/ISO 13849-1 || type 2 IEC 61496-1-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111230EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI111208EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- 1 male connector M12 4 pins
- Switching Frequency
- 500 Hz maximum
- Maximum Voltage Drop
- <1.5 V closed)
- Marking
- CE
- Tightening Torque
- 24 N.m fixing nut || 2 N.m connector
- Maximum Delay Recovery
- 1 ms
- Detection System
- transmitter-receiver system
- [Us] Rated Supply Voltage
- 12...24 V DC 10...30 V reverse polarity protection
Current Consumption<= 35 mA no-load
Maximum Delay Response1 ms
Line Of Sight Type90° to case axis
Net Weight0.155 kg
Function Availablebuilt-in muting function || light or dark programmable switching
Materialnickel plated brass case || PMMA (polymethyl methacrylate) lenses
Switching Capacity In Ma<= 100 mA overload and short-circuit protection)
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 1 safety outputs OSSD PNP
- Device Short Name
- XU2S
Product Or Component Typesafety thru-beam pair photo-electric sensors
[Sn] Nominal Sensing Distance8-8 m
