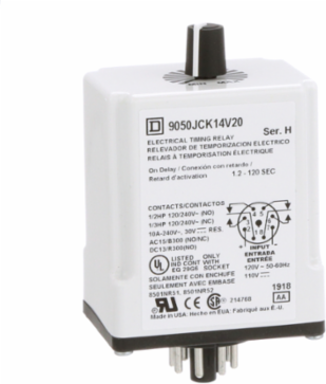

Square D 9050JCK14V20 Timing Relay, 10A, 120/240 VAC, 1.2 to 120 Seconds Delay
Square D 9050JCK14V20 Timing Relay, 10A, 120/240 VAC, 1.2 to 120 Seconds Delay
- MPN: 9050JCK14V20
- UPC: 785901032571
- PPN: SCH-9050JCK14V20
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$122.42/ EA
Description

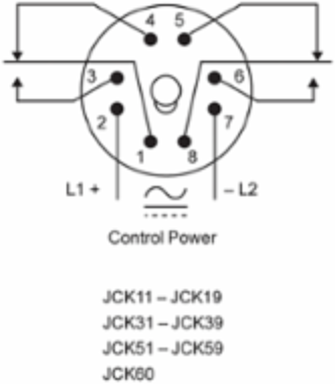

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an on delay timing mode. When the input voltage is applied, the time delay begins. Relay contacts change state after time delay is complete. When the input voltage is removed, contacts return to their shelf state. The timing range of 1.2 to 120 seconds is easily adjustable with a knob on the top of the timer. This plug in timer plugs into an 8501NR51 or 8501NR52 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.
Specifications
Environment
- Product Certifications
- UL listed || UL recognized || CE

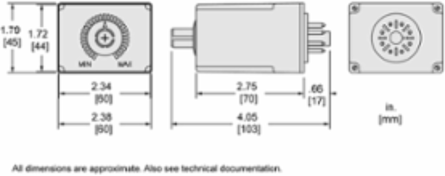

- Height
- 61 mm
- Depth
- 104 mm
Ambient Air Temperature For Operation-18-150 °F
Width43 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406037EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1406037EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Contacts Type And Composition
- 2 NO + 2 NC
- Contacts Material
- silver nickel
- Shape Of Pin
- tubular
- Switch Function
- DPDT
- Pin Number
- 8
Mounting Supportsocket
Hold-In Power Consumption In Va2-2 VA
[In] Rated Current10 A
Product Compatibility8501NR52 || 8501NR51
Maximum Switching Voltage240 V AC
Specifications
- [Uc] Control Circuit Voltage
- 120 V AC || 110 V DC
- Range Of Product
- 9050JCK
- Time Delay Type
- on-delay
Time Delay Range1.2...120 s
Product Or Component Typetimer
