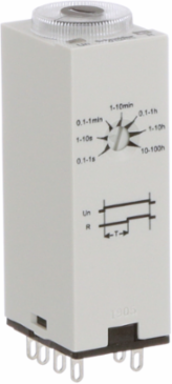

Schneider Electric TDR782XBXA-24D Time delay relay, Harmony SE Relays, DPDT, 100ms to 100hours, 7 time scales, on-delay function, socket compatible, 5A, 24V DC
- MPN: TDR782XBXA-24D
- PPN: SCH-TDR782XBXA-24D
CAD
$154.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SE Relays TDR782 series, miniature time delay relay offers 7 different time ranges with ultra-wide timing range of 0.1 ms to 100 hr with time adjustment dial for fine tune of time settings. Input voltage of 24VDC with contact ratings of 5A makes this single-function, single-voltage relay ideal for specific applications. Contact configaration is performed by silver alloy contacts as DPDT. Socket compatible mounting option allows to set relay directly to 35-mm DIN-rail or panel and makes it ideal for tight spaces and allows easy installation. 2 LED status indicators shows input indication in green LED and output indication in amber steady on LED light as energized relay status. IEC and NEMA terminal numbering allows numbering compatibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Depth27 mm
Complementary Attributes
- Maximum Power Consumption In W
- 1.2 W 24 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Repeat Accuracy
- +/- 0.5 % - 5...5 %, +/- 0.5 % - 5...5 %+/- 0.5 % - 5...5 %, +/- 0.5 % - 5...5 %
- Time Delay Range
- 100 ms...1 s, 1...10 s, 0.1...1 min, 1...10 min, 0.1...1 h, 1...10 h, 10...100 h
- Certificate Agency
- CSA, cURus
- Local Publishable Date
- 2026-05-08
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- dial front
- Electrical Durability
- 100000 cycles
- Mechanical Durability
- 10000000 cycles
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Legacy
- Returnability
- Yes
- Switch Function
- DPDT
- Pep Code
- ENVPEP1310019EN
- Width Nominal
- 21 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410020
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Temperature Drift+/- 0.05 %/°C, +/- 0.05 %/°C
Voltage Range0.9...1.1 Un, 0.85...1.15 Un
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Contacts Materialsilver alloy contacts
Dielectric Strength2000 V between input and output
Local Signalling1 LED amber output status1 LED green input status
Mounting Supportsocket
Product Or Component Typetime delay relay
Reset Time50 ms maximum
Sustainable PackagingYes
Time Delay TypeA
Height Nominal59.4 mm
[Us] Rated Supply Voltage24 V DC
Package Weight(Lbs)49.895 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C, -20-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1310019EN
- Ip Degree Of Protection
- IP50 IEC 60529 enclosure)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1310019EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- time delay relay
Range Of ProductLegacy
Output Attributes
- Nominal Output Current
- 5 A
