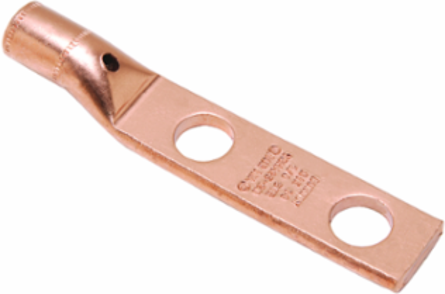

Burndy YGHHA312NTN Tin Plated Ground Lug, 3/0 kcmil, 1/2 Inch Stud, 4 Inch Length
- MPN: YGHHA312NTN
- UPC: 781810412565
- PPN: BUR-10052317
CAD
$240.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Tin Plated Ground Lug, 3/0 kcmil, 1/2" stud, 4" L, 1.62" W
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-3/50 in
- Dimension - D inch
- 3.02 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 5.82 in
- Dimension - Outside Diameter inch
- 1.16 in
- Dimension - Z inch
- 0.66 in
Dimension - B Length inch2.06 in
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm148 mm
Dimension - N inch0.62 in
Dimension - Pad Width inch1.62 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Size
- 300 kcmil;350 kcmil
- Conductor - Copper Str Size Range
- 350 kcmil
Conductor - Copper Str Size A350 kcmil
Conductor TypeCU C Str-Size
General
- Connector Type
- Terminal
- Material
- Copper
- Plated
- Y
- Type
- Terminals
- UPC 12 Digit
- 7818104125655
Die Index20
Physical Attribute - Number of Crimps Required4
Plating TypeTin - Electro Plated
UPC781810412565
Logistics
- Minimum Pack Quantity
- 1
