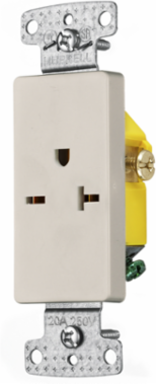

Bryant RRD205LA Single Decorator Receptacle, 20A 250V, 2-Pole 3-Wire, Light Almond
- MPN: RRD205LA
- UPC: 883778300790
- PPN: HBL-RRD205LA
- UNSPSC: 39121406
CAD
$29.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TradeSelect, Single Decorator Receptacle, Self Grounding, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Light Almond
Features
- Single Decorator Receptacle
- Self Grounding
- 20A 250V
- 2-Pole 3-Wire Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.500 in
- Application
- Residential Receptacles
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Voltage Rating
- 250V kV
- Wire Size
- #14 AWG to #12 AWG
- Connectivity
- Side Wired
- Nema Rating
- 6-20R
- Number Of Wires
- 3-Wire Grounding
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- RRD205AL
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.65 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Amperage Rating20 A
ColorLight Almond
NEMA Rating6-20R
Number of Wires3-Wire Grounding
Special FeaturesSelf Grounding
Wattage5000
Voltage Rating Description250V kV
Display SizeStandard Sized Product
Number Of Poles2-Pole
Description - InvoiceRESI SGL RCPT, 20A 250V, S GRND, DEC, LA
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE2.100x7.900x4.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778300790
Case Weight25.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
