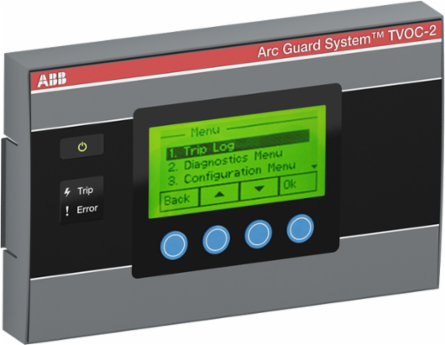

ABB TVOC-2-H1 TVOC-2-H1 HMI
- MPN: TVOC-2-H1
- UPC: 888614192416
- PPN: ABB-TVOC-2-H1
- UNSPSC: 32151802
CAD
$1495.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TVOC-2-H1 is an HMI to be added to the TVOC-2 Arc Guard System Main unit if more than one HMI is needed. The added HMI can be added to the panel door for easier overview. The HMI is connected to the main unit by a 3 m cable with RJ45 connector that comes with the HMI unit. Accessories that comes with the unit are mounting nut, gasket and blank front label.
Specifications
Additional Information
- Additional Information
- ARC MONITOR TVOC-2 HMI
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NO
- 0
- Product Main Type
- TVOC-2
- RoHS Date
- 1009 1
- Terminal Type
- Screw Terminals
Mounting TypeMounted on main unit or cabinet door
Number of Auxiliary Contacts NC0
Power Loss1 W
Product NameHMI
Suitable ForTVOC-2
Dimensions
- Product Net Width
- 130 mm
- Product Net Depth / Length
- 27 mm
Product Net Height82 mm
Product Net Weight0.115 kg
Classifications
- ETIM 9
- EC002911 - Arc detection and mitigation system
- Object Classification Code
- B
- eClass
- V11.0 : 27142214
IDEA Granular Category Code (IGCC)3594 >> Interface module
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Environmental
- Ambient Air Temperature
- Operation -25 ... +55 °CStorage -25 ... +55 °C
- REACH Declaration
- 2AGS2022-006202
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information1SFC170003D0201
RoHS Information2AGS2022-006277-RoHS
Ordering
- E-Number (Finland)
- 2712002
- E-Number (Sweden)
- 2801706
- Customs Tariff Number
- 85389099
E-Number (Norway)4116453
Minimum Order Quantity1 piece
