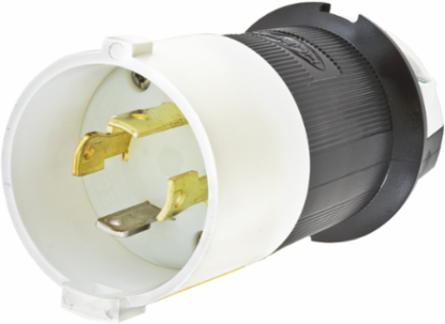

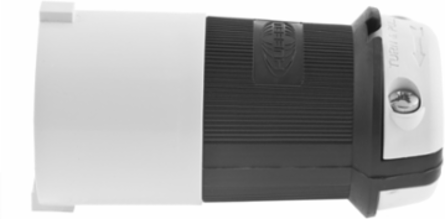

Hubbell Wiring Device-Kellems HBL2711S Twist-Lock Safety Shroud Male Plug 30A 125/250V L14-30P 3-Pole 4-Wire
- MPN: HBL2711S
- UPC: 783585234700
- PPN: HBL-HBL2711S
- UNSPSC: 39121402
CAD
$82.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Safety-Shroud®, Male Plug, 30A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-30P, Screw Terminal, Black and White Nylon Body, White PBT Shroud.
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2711S AutoCAD Drawing
- Current / Amperage Rating
- 30 A
- Height
- 4.21 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 30 A
- Color
- Black, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Plugs
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.40 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG S/SHRD PLUG, 30A 125/250V, L14-30P
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Country of OriginUnited States
Dimensions2.33 in x 2.33 in x 4.21 in
Horsepower - Maximum2(2)
Length2.33 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
NEMA RatingL14-30P
Number of Wires4-Wire
Size2.33 in x 2.33 in x 4.21 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating125/250 V
Voltage Rating Description125/250 V
Width2.33 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL14-30P
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A120
Cord Range0.350"-1.150" (9-29)
Cord Diameter0.350-1.150 in
MaterialComposite
BOX SIZE5.900x12.400x5.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585234700
Case Weight4.550 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
