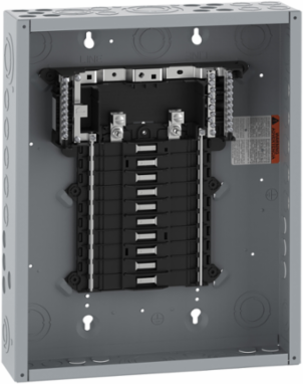

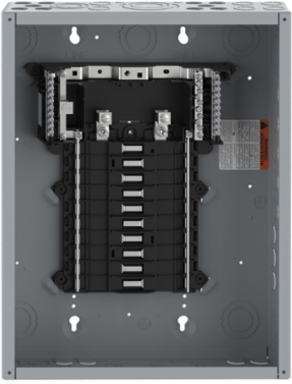

Square D QO120L125PG Load center, QO, 1 phase, 20 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar
Square D QO120L125PG Load center, QO, 1 phase, 20 spaces, 24 circuits, 125A convertible main lugs, PoN, NEMA1, gnd bar
- MPN: QO120L125PG
- UPC: 785901609407
- PPN: SCH-QO120L125PG
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$460.75/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 20 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, ground bar, and is UL rated.
Specifications
Complementary Attributes
- Line Rated Current
- 125 A
Rated Current125 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Product Or Component Type
- Load Center
- Tightening Torque
- Cover 20 lb.in
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.5 kg CO2 eq., 0.4933056839
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 26 kg CO2 eq., 26.4131917552
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- H And D Subrange
- RESI
- H And D Enrichment Function
- ENCLOSURES
- H And D Enrichment Class 4
- single-phase main lug only indoor load center
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Box Number
- 6
- Energy Efficiency Optimized
- False
- Number Of Circuits
- 24
- Number Of Tandem Circuit Breakers
- 4
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- EIME v5.9.4
- Total Lifecycle Carbon Footprint
- 29 kg CO2 eq.
- Pep Code
- ENVPEP2212003EN
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Pn
- 1
- Width Nominal
- 362 mm
- Air Pollution (M3) Operational Energy Use [B6]
- 7.4172
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1.1052
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1.1052
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Provided Equipmentgrounding bar
Carbon Footprint Of The Distribution Phase A41.7848444722, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0213673454, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60.1 kg CO2 eq., 0.087341
Local Publishable Date2026-03-26
Stocking FlagN
H And D DomainSafety
H And D Enrichment Assignmentno
H And D Enrichment Class 3Load centers (equipped)
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Device Compositiongrounding bar included (not installed)
Load Center TypePoN Convertible Mains (lugs)
Number Of Spaces20
Phase1 phase
Range Of ProductQO
Short Circuit Current65 kA
Sustainable PackagingNo
Warranty In Months18
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review

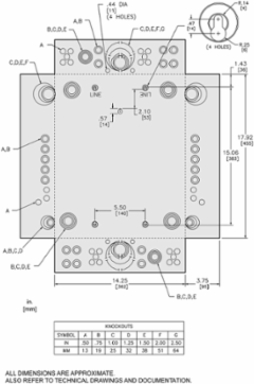

Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Tlaxcala Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Offer Owner Code190788
Height Nominal455 mm
Certificate AgencyUL Listed
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Operational Energy Use [B6]4.3059
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 28.8000502567
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2212003EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2212003EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Load Center
- Phase
- 1 phase
Provided Equipmentgrounding bar
Range Of ProductQO
Specifications
- Country of Origin
- Mexico, United States
Depth95 mm
